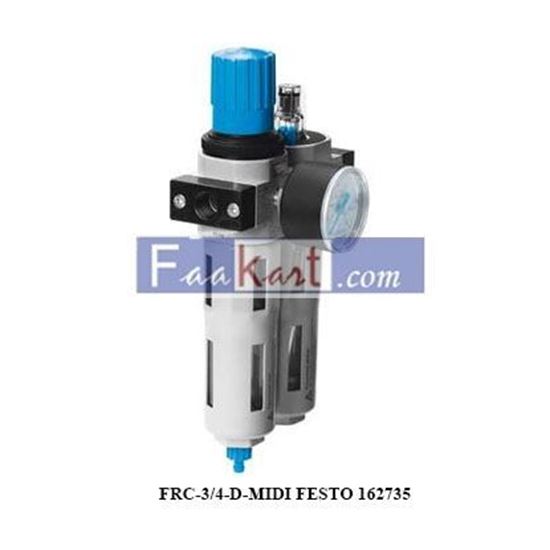

FRC-3/4-D-FESTO MIDI 162735

Size Midi Series D Actuator lock Rotary knob with detent Mounting position Vertical +/- 5° Condensate drain Manually rotating Structural design Filter regulator with pressure gauge Proportional standard oil mist lubricator Max. condensate volume 43 ml Grade of filtration 40 µm Bowl guard Metal bowl guard Symbol 00991549 Pressure gauge with pressure gauge Operating pressure 1 bar ... 16 bar Pressure regulation range 0.5 bar ... 12 bar Max. pressure hysteresis 0.2 bar Standard nominal flow rate 2600 l/min Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:-] Inert gas Temperature of medium -10 °C ... 60 °C Ambient temperature -10 °C ... 60 °C Product weight 1440 g Type of mounting Line installation With accessories Pneumatic connection 1 G3/4 Pneumatic connection 2 G3/4 Note on materials RoHS-compliant Housing material Die-cast zinc Material of bowl PC
