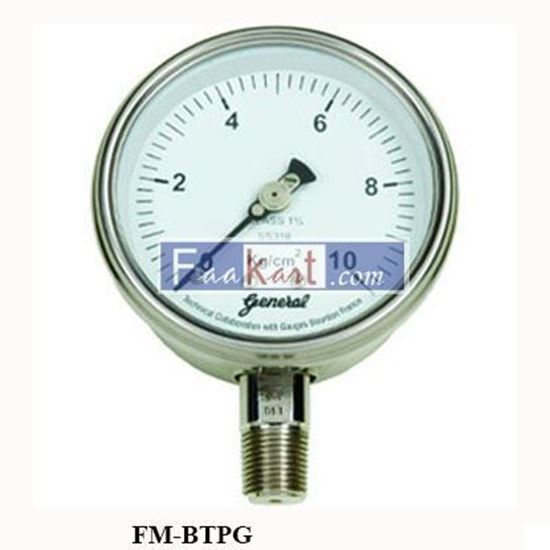

MODEL FM-BTPG
STANDERD EN 837-1
ACCURACY ±1.6 % OF FSD
AMBENT TEMP -25ºC TO +65ºC
PROCESS TEMP 65ºC
OVER PRESSURE LIMIT 130%
CASE & BEZEL AISI SS 304 (BAYONET LOCK TYPE)
MOVEMENT AISI SS 304
SOCKET AISI SS 316
BOURDEN AISI SS 316
JOINTS TIG ARGON ARC WELDING
PROTECTION IP 65
DIAL ALUMINIUM, BLACK ON WHITE
POINTER ALUMINIUM, BLACK COLORED CENTER ZERO ADJUSTMENT
WINDOW PLAINGLASS
BLOW OFF DISC NEOPRINE
GASKET & FILLING PLUG NEOPRINE
