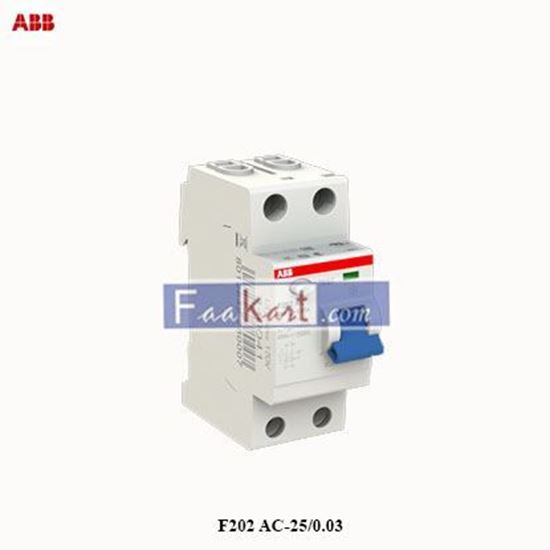

F202 AC-25/0.03 ABB Residual Current Circuit Breaker 2CSF202001R1250

F202 AC-25/0.03 Residual Current Circuit Breaker

Be the first to review this product

Manufacturer: ABB

SKU: PCM1649

Old price: 465.00 (SAR)

Price: 305.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

Technical

Standards:
IEC/EN 61008
UL 1053
Type of Residual Current:
AC type
Rated Voltage (Ur):
230 V
Rated Operational Voltage:
230 V
Rated Insulation Voltage (Ui):
500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Rated Current (In):
25 A
Rated Residual Current:
30 mA
Rated Conditional Short-Circuit Current (Inc):
10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
1 kA
Maximum Surge Current:
0.25 kA
Leakage Current Type:
AC
Rated Frequency (f):
50 … 60 Hz
Power Loss:
at Rated Operating Conditions per Pole 1 W
Power Supply Connection:
Arbitrary
Electrical Endurance:
10000 cycle
Number of Poles:
2
Operating Characteristic:
Instantaneous
Mounting Type:
DIN rail
Options Provided:
None
Accessories Available:
Yes
Connecting Capacity:
Busbar 10 mm²
Rigid 25 ... 25 mm²
Flexible 25 ... 25 mm²
Rated Cross-Section:
4 - Multi-Wired 0...25 mm²
1 - Solid-Core 25...25 mm²

Environmental

Ambient Temperature:
-25...55 °C
Ambient Air Temperature:
Operation -25...55 °C
Degree of Protection:
IP2X
Pollution Degree:
2
Resistance to Vibrations acc. to IEC 60068-2-6:
0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information:
Refer to RoHS
REACH Declaration:
9AKK108467A9482

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
277 V AC
Short-Circuit Current Rating (SCCR):
30 mA

Dimensions

Width in Number of Modular Spacings:
2
Product Net Width:
0.035 m
Product Net Height:
0.085 m
Product Net Depth / Length:
0.069 m
Product Net Weight:
0.200 kg
Built-In Depth (t2):
69 mm
