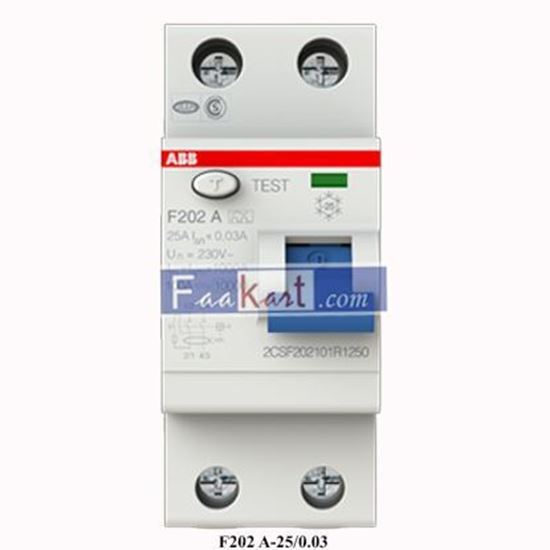

F202 A-25/0.03 ABB 2CSF202101R1250 Residual Current Circuit Breaker

F202 A-25/0.03 ABB 2CSF202101R1250 The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

Be the first to review this product

Manufacturer: ABB

SKU: SHA3560

Old price: 440.00 (SAR)

Price: 340.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical

Standards:
IEC/EN 61008
UL 1053
Type of Residual Current:
A type
Rated Voltage (Ur):
230 V
Rated Operational Voltage:
230 V
Rated Insulation Voltage (Ui):
500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
25 A
Rated Residual Current:
30 mA
Rated Conditional Short-Circuit Current (Inc):
10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
1 kA
Leakage Current Type:
A
Rated Frequency (f):
50 … 60 Hz
Power Loss:
at Rated Operating Conditions per Pole 1 W
Power Supply Connection:
Arbitrary
Electrical Endurance:
10000 cycle
Number of Poles:
2
Operating Characteristic:
Instantaneous
Mounting Type:
DIN rail
Options Provided:
None
Accessories Available:
Yes
Connecting Capacity:
Busbar 10 mm²
Rigid 25 ... 25 mm²
Flexible 25 ... 25 mm²
Rated Cross-Section:
4 - Multi-Wired 0...25 mm²
1 - Solid-Core 25...25 mm²
