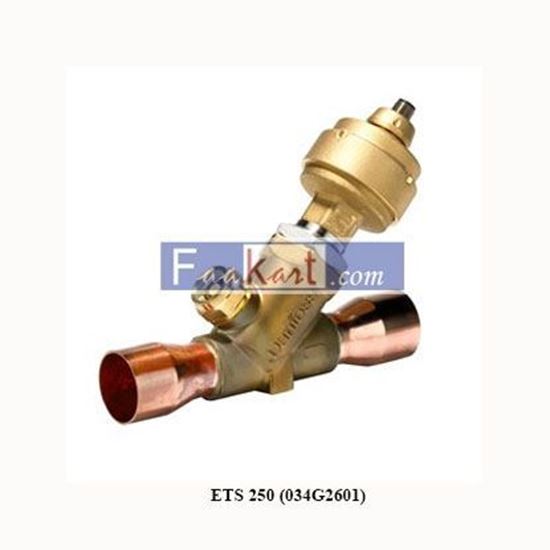

ETS 250 (034G2601) DANFOSS ELECTRIC EXP VALVE

Electric expansion valve, ETS 250 034G2601

Manufacturer: DANFOSS

SKU: NASR237

Call for pricing

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	140 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE EAC LLC CDC TYSK UL UKCA
Balanced port [Yes/No]	Yes
Compatible Danfoss controllers	EKE 1A EKE 1B EKE 1C
Connection material	Copper
Direction	Straightway
Electrical conn. Male/Female	Male
Electrical connection	M12
Electrical connection size	4 pin
Enclosure rating IP	IP67
Flow direction	Bi-flow
Fluid Group	2
Full travel time speed [s] [max]	25.4 s
Full travel time speed [s] [min]	12.7 s
In scope of WEEE and contain batteries	No

Inlet size [in]	1 3/8 in
Lubricants compatibility	MO POE
Manual operation option	AST-G service driver
Max allowed duty cycle [%]	100 %
Max tot PowerCons CurrDrive[W]	1.3 W
Max tot PowerCons VoltDrive[W]	5.5 W
Max. Working Pressure [bar]	34 bar
Max. Working Pressure [psig]	493 psig
MaxOPD [bar]	33 bar
MaxOPD [psi]	478.6 psi
MaxOPD reverse [bar]	10 bar
MaxOPD reverse [psi]	145 psi
Motor type	Bi-polar
Outlet connection type	Solder ODF
Outlet size [in]	1 3/8 in
