Picture of E2E-X5Y1 2M OMRON PROXIMITY SENSOR

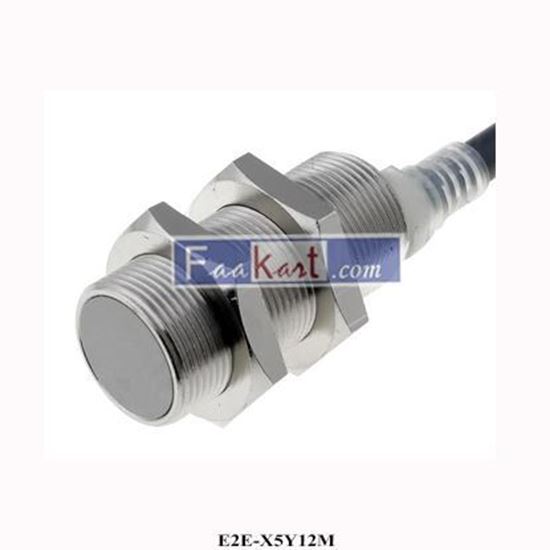

E2E-X5Y1 2M OMRON PROXIMITY SENSOR

E2E-X5Y1 2M OMRON Shielded, Cylinder type (with screw) M18, AC 2-wire models, Sensing distance 5 mm ±10%, NO, Pre-wired models
Be the first to review this product
Manufacturer: Omron
SKU: SHA3653
100.00 (SAR)
80.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

head size M18
Type Cylinder type (with screw), Shielded
Power source AC 2-wire models
Sensing distance 5 mm ±10%
Setting distance 0 to 4 mm
Differential distance 10% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 18 x 18 x 1 mm
Response frequency 25 Hz
Power supply voltage 24 to 240 VAC
Operating voltage range 20 to 264 VAC
Leakage current 1.7 mA max.
Control output (Switching capacity) 5 to 300 mA
Indicator Operation indicator (red)
Operation mode NO
Protective circuit Surge suppressor
Ambient temperature (Operating) -40 to 85 ℃
Ambient temperature (Storage) -40 to 85 ℃
Ambient humidity (Operating) 35 to 95% RH
Ambient humidity (Storage) 35 to 95% RH
Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
±15% max. of sensing distance at 23 ℃ in the temperature range of -40 to 85 ℃
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 4,000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions
Degree of protection IEC: IP67
Company standard: Oil-proof
Connection method Pre-wired models (2 m)
Weight Package: Approx. 130 g
Material Case: Brass nickel plating
Sensing surface: Polybutylene terephthalate (PBT)
Clamping nuts: Brass nickel plating
Toothed washers: Iron zinc plating
Accessories Instruction manual
