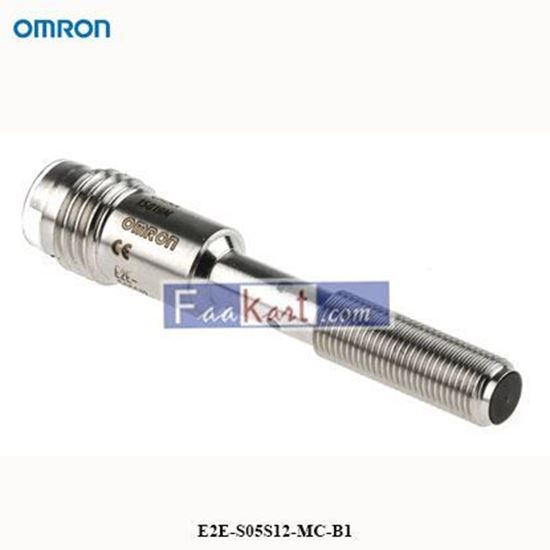

E2E-S05S12-MC-B1 OMRON Small-diameter Proximity Sensor E2ES05S12MCB1

Shielded, Cylinder type (with screw) M5, DC Three-wires models, Sensing distance 1.2 mm ±10%, NO, PNP open collector, M8 connector models
Manufacturer: Omron
SKU: PCM1818
345.00 (SAR)
257.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Sensing head size M5
Type Cylinder type (with screw), Shielded
Power source DC Three-wires models
Sensing distance 1.2 mm ±10%
Setting distance 0 to 0.84 mm
Operation mode NO



Sensing head size M5
Type Cylinder type (with screw), Shielded
Power source DC Three-wires models
Sensing distance 1.2 mm ±10%
Setting distance 0 to 0.84 mm
Differential distance 15% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 4 x 4 x 1 mm
Response frequency 4 kHz
Power supply voltage 10 to 30 VDC ripple (p-p) 10% included
Operating voltage range 10 to 30 VDC
Current consumption 10 mA max.
Control output (Output type) PNP open collector
Control output (Switching capacity) 100 mA max.
Control output (Residual voltage) 2 V max. (Load current 100 mA with cable length of 2 m)
Indicator Operation indicator (yellow)
Operation mode NO
Protective circuit Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
Surge suppressor
Ambient temperature (Operating) -25 to 70 ℃
Ambient temperature (Storage) -25 to 70 ℃
Ambient humidity (Operating) 35 to 95% RH
Ambient humidity (Storage) 35 to 95% RH
Temperature influence ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions
Degree of protection IEC: IP67
Company standard: Oil-proof
Connection method M8 connector models
Weight Package: Approx. 15 g
Material Case: SUS303 (EN1.4305)
Sensing surface: Heat-resistant ABS resin
Clamping nuts: SUS430 (EN1.4016)
Toothed washers: SUS303 (EN1.4305)
Accessories Instruction manual, Model label, Nut Set
