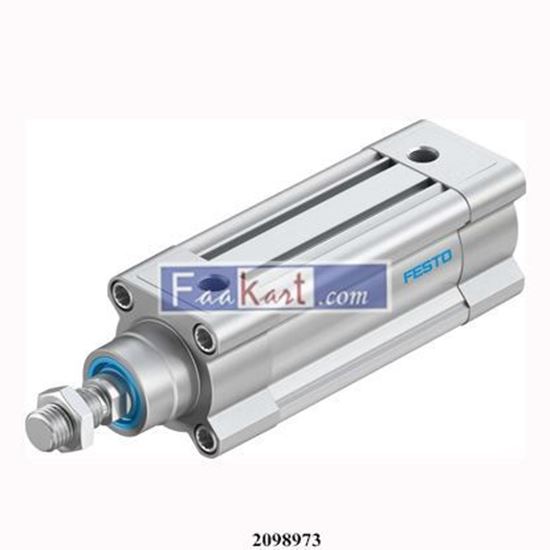

DSBC-50-70-PPVA-N3 FESTO 2098973 ISO cylinder

Technical Data

• Stroke70 mm
• Piston diameter50 mm
• Piston rod threadM16x1.5
• CushioningPneumatic cushioning, adjustable at both ends
• Mounting positionoptional
• Conforms to standardISO 15552
• Piston-rod endMale thread
• DesignPiston Piston rod Profile barrel
• Position detectionVia proximity switch
• Symbol00991235
• VariantsPiston rod at one end
• Operating pressure0.04 MPa ... 1.2 MPa
• Operating pressure0.4 bar ... 12 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom classClass 6 according to ISO 14644-1
• Ambient temperature-20 °C ... 80 °C
• Impact energy in end positions1 J
• Cushioning length22 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke990 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178 N
• Moving mass for 0 mm stroke365 g
• Additional moving mass per 10 mm stroke25 g
• Basic weight for 0 mm stroke1190 g
• Additional weight per 10 mm stroke56 g
• Type of mountingEither: Via female thread With accessories
• Pneumatic connectionG1/4
• Note on materialsRoHS-compliant
• Material coverDie-cast aluminium, coated
• Material piston sealTPE-U(PU)
• Material pistonWrought aluminium alloy
• Material piston rodHigh-alloy steel
• Material piston rod wiperTPE-U(PU)
• Buffer seal materialTPE-U(PU)
• Cushioning piston materialPOM
• Material cylinder barrelSmooth-anodised wrought aluminium alloy
• Material nutGalvanised steel
• Material bearingPOM
• Material collar screwsGalvanised steel
