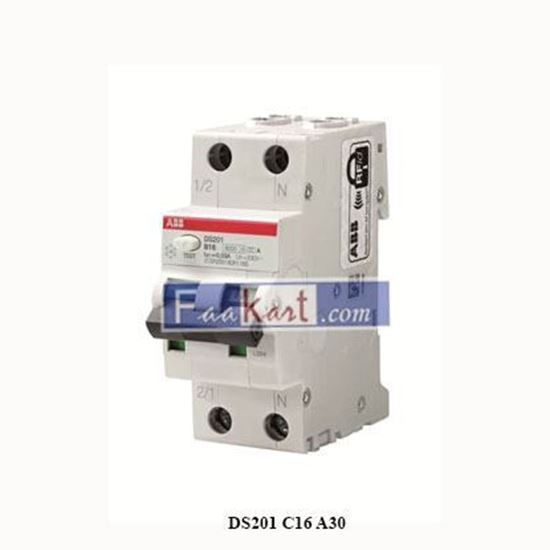

DS201 C16 A30 ABB Residual Current Circuit Breaker with Overcurrent Protection 2CSR255180R1

The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).
Manufacturer: ABB
SKU: PCM651
564.00 (SAR)
263.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

  • Normes et standards:
    IEC/EN 61009-1, IEC/EN 61009-2-1
  • Tripping Characteristic:
    C
  • Type of Residual Current:
    A type
  • Tension nominale (Ur):
    230 V
  • Tension:
    230 / 240 V AC
  • Tension assignée d’isolement (Ui):
    500 V
  • Test Voltage (Ut):
    170 ... 264 V
  • Tension assignée de tenue aux chocs (Uimp):
    4 kV
  • Dielectric Test Voltage:
    2 kV
  • Primary Rated Impulse Withstand Voltage:
    4 kV
  • Type de tension:
    AC
  • Courant nominal (In):
    16 A
  • Rated Residual Current:
    30 mA
  • Rated Short-Circuit Capacity:
    6 kA
  • Pouvoir assigné de coupure ultime en court-circuit (Icu):
    10 kA
  • Rated Residual Breaking Capacity (IΔm):
    EN 61009-1 6000 A
    IEC 61009-1 6000 A
  • Rated Conditional Short-Circuit Current (Inc):
    10 kA
  • Pourvoir assigné de coupure de service en court-circuit (Ics):
    7.5 kA
  • Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
    6 kA
  • Leakage Current Type:
    A
  • Fréquence (f):
    50/60 Hz
  • Fréquence assignée (f):
    50/60 Hz
  • Power Loss:
    3.3 W
  • Power Supply Connection:
    Arbitrary
  • Contact Position Indication:
    Red ON / Green OFF
  • Classe de limitation d'énergie:
    3
  • Electrical Endurance:
    10000 cycle
  • Mechanical Endurance:
    20000 cycle
  • Nombre de pôles:
    2
  • Number of Protected Poles:
    1
  • Number of Modular Spacings per DIN Rail:
    2
  • Fault Indication:
    Blue flag on toggle
  • Operating Characteristic:
    Instantaneous
  • Catégorie de Surtension:
    III
  • Position of Neutral Terminals:
    Right
  • Couple de serrage:
    2.8 N·m
  • Type d'accessoire:
    Auxiliary contact
    Signal contact / auxiliary contact
    Shunt trip
    Auxiliary contact for bottom fitting
    Undervoltage release
    Overvoltage release
    Motor operating device
  • Actuator Type:
    Toggle - Insulation group II, Black RAL 9005,
    sealable in ON-OFF positions
  • Earthing Switch Type:
    Undelayed
  • Type d’enveloppe:
    Insulation group I - II, RAL 7035
  • Type de montage:
    on DIN rail EN 60715 (35mm) by means of mounting clip
  • Type de libération:
    C
  • Screw Terminal Type:
    Failsafe Bi-directional Cylinder-lift Terminal
  • Options Provided:
    Unpacked
  • Type d'encastrement:
    Any
  • Accessories Available:
    Oui
  • Nombre de batteries:
    0
  • Cable Size:
    25 mm²
  • Connecting Capacity:
    Busbar 10 ... 10 mm²
    Stranded 0.75 ... 25 mm²
    Flexible with Ferrule 0.75 ... 16 mm²
    Flexible 0.75 ... 16 mm²
  • Section nominale:
    1 - Solid-Core 0.75-25 mm²
    4 - Multi-Wired 0.75-16 mm²
  • Wire Stripping Length:
    12 mm
  • Type de borne:
    Screw Terminals

Environnement

  • Température extérieure:
    -25...55 °C
  • Température de l’air ambiant:
    Operation -25...55 °C
  • Reference Ambient Air Temperature:
    30 °C
  • Indice de protection:
    Terminals IP20
    Housing IP40
  • Degré de pollution:
    2
  • Environmental Conditions:
    28 cycles
    with 55 °C / 90-96 %
    and 25 °C / 95-100 %
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
  • Résistance aux chocs selon CEI 60068-2-27:
    25g / 2 shocks / 13 ms
  • Informations environnementales:
    2CSC422002K2701

Technique UL/CSA

  • Short-Circuit Current Rating (SCCR):
    0.03 A

Dimensions

  • Width in Number of Modular Spacings:
    2
  • Produit Largeur Net:
    0.035 m
  • Produit Hauteur Net:
    0.085 m
  • Produit Longueur Net:
    0.069 m
  • Poids net:
    0.200 kg
  • Profondeur d'encastrement (t2):
    69 mm
