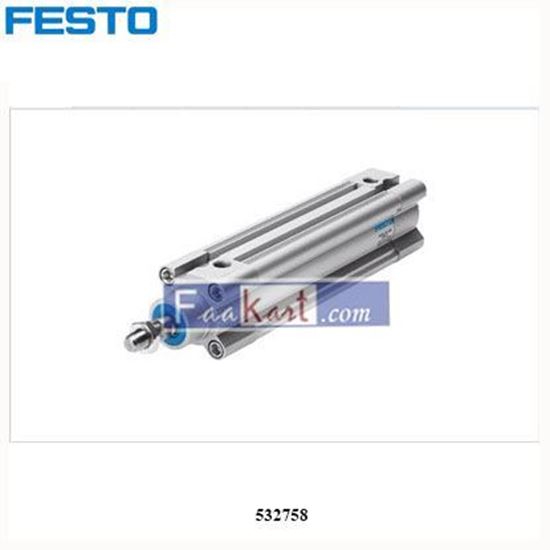

DNCB-50-250-PPV-A Festo Standard Cylinder 532758

Feature

Stroke 250 mM

Piston diameter 50 mm

Piston rod thread M16x1,5

Cushioning PPV: Pneumatic cushioning adjustable at both ends Assembly position Any Conforms to standard ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290) Piston-rod end Male thread Design structure Piston Piston rod Profile barrel Position detection For proximity sensor Variants Single-ended piston rod Operating pressure 0.6 ... 12 bar

Mode of operation double-acting Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)

Corrosion resistance classification CRC 2 Ambient temperature -20 ... 80 °C Impact energy in end positions 1 J Cushioning length 22 mm Theoretical force at 6 bar, return stroke 990 N Theoretical force at 6 bar, advance stroke 1,178 N Moving mass with 0 mm stroke 363 g

Additional weight per 10 mm stroke 56 g Basic weight for 0 mm stroke 1,225 g Additional mass factor per 10 mm of stroke 25 g Mounting type with internal (female) thread with accessories Pneumatic connection G1/4 Materials note Conforms to RoHS Materials information for cover Aluminium die cast coated Materials information for seals TPE-U(PU) Materials information for piston rod High alloy steel Materials information for cylinder barrel Wrought Aluminium alloy
