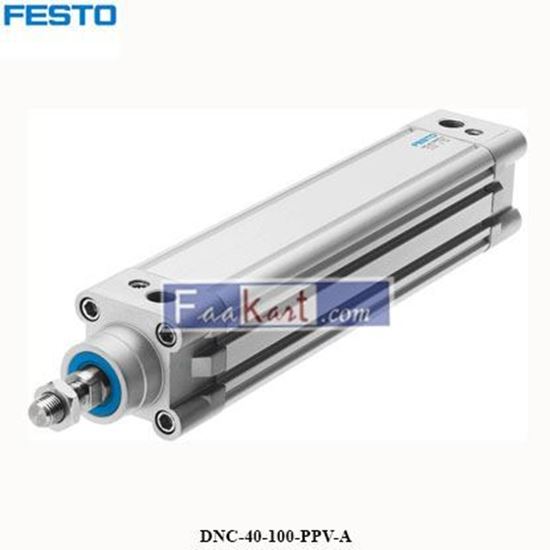

DNC-40-100-PPV-A FESTO ISO cylinder 163341

Technical Data

• Stroke100 mm
• Piston diameter40 mm
• Piston rod threadM12x1.25
• CushioningPneumatic cushioning, adjustable at both ends
• Mounting positionAny
• Conforms to standardISO 15552
• Piston rod endExternal thread
• Structural designPiston Piston rod Profile barrel
• Position sensingFor proximity sensor
• Symbol00991235
• VariantsPiston rod at one end
• Operating pressure0.06 MPa ... 1.2 MPa
• Operating pressure0.6 bar ... 12 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-20 °C ... 80 °C
• Impact energy in the end positions0.2 J
• Cushioning length20 mm
• Theoretical force at 6 bar, retracting633 N
• Theoretical force at 6 bar, advancing754 N
• Moving mass at 0 mm stroke307 g
• Additional moving mass per 10 mm stroke16 g
• Basic weight with 0 mm stroke800 g
• Additional weight per 10 mm stroke45 g
• Type of mountingWith internal thread With accessories
• Pneumatic connectionG1/4
• Note on materialsRoHS-compliant
• Cover materialDie-cast aluminum Coated
• Seals materialTPE-U(PU)
• Piston rod materialHigh-alloy steel
• Material of cylinder barrelWrought aluminum alloy Smooth anodized
