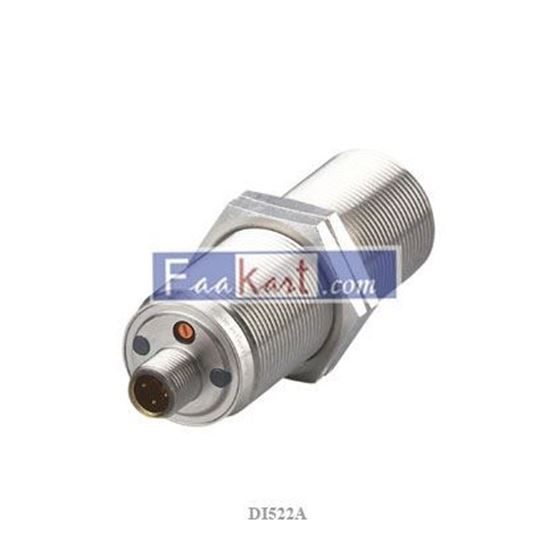

DI522A IFM Compact evaluation unit for speed monitoring DIA3010-ZPKG/US/3D/5S

Speed monitor; Nominal voltage DC [V] : 10...36; Protection class : III; Reverse polarity protection : yes; Total number of outputs : 1; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Short-time current rating of switching output [mA] : 250; Short-circuit proof : yes; Overload protection : yes; Sensing range [mm] : 10; Sensing range adjustable : no; Operating distance [mm] : 0...8.1; Setting range [Imp/min] : 5...3600; Correction factor : steel: 1; stainless steel: 0.7; brass: 0.5; aluminum: 0.4; copper: 0.3; Hysteresis [% of Sr] : 10; Start-up delay [s] : 5; Max. damping frequency [Imp/min] : 18000; Adjustment of the switch point : multiturn potentiometer; Ambient temperature [°C] : -25...60; Storage temperature [°C] : -25...60; Mounting : flush mountable; Thread designation : M30 x 1.5; Materials : brass special coating; PA; stainless steel; TPE-U; Items supplied : lock nuts: 2
