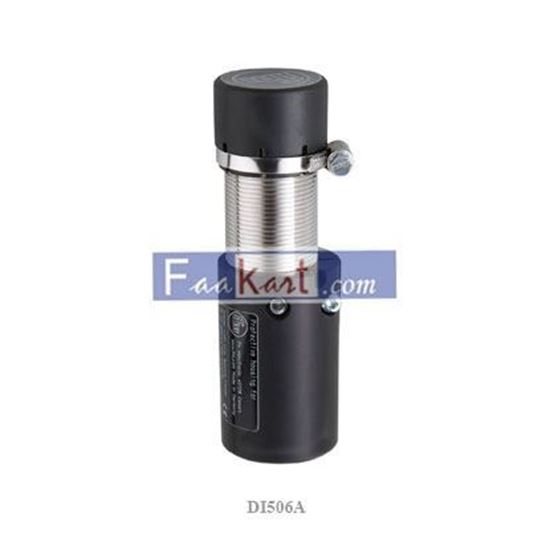

DI506A IFM Compact evaluation unit for speed monitoring

Compact evaluation unit for speed monitoring; Nominal voltage DC [V] : 10...36; Protection class : III; Reverse polarity protection : yes; Total number of outputs : 1; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Short-time current rating of switching output [mA] : 250; Switching frequency DC [Hz] : 100; Short-circuit proof : yes; Overload protection : yes; Sensing range [mm] : 10; (without impact protection housing: flush mountable; with impact protection housing: non-flush mountable, 7 mm); Sensing range adjustable : no; Real sensing range Sr [mm] : 10 ± 10 % (without impact protection housing flush mountable); Operating distance [mm] : 0...5 (with impact protection housing non-flush mountable); Setting range [Imp/min] : 5...300; Correction factor : steel: 1; stainless steel: 0.7; brass: 0.5; aluminum: 0.4; copper: 0.3; Hysteresis [% of Sr] : 10; Start-up delay [s] : 5; (typical); Max. damping frequency [Imp/min] : 15000; Adjustment of the switch point : multiturn potentiometer; Ambient temperature [°C] : -20...50; Mounting : flush mountable; Thread designation : M30 x 1.5; Materials : brass special coating; PBT; PPE; TPE-U; PA 6.6; Items supplied : lock nuts: 2: Impact protection housing; mounting clamp

Connection

Connector: 1 x M12

Number . of inputs and outputs

Number of analogue outputs: 1; Number of relay outputs: 2

Current consumption

< 15 mA

Voltage supply

20.30 (via flat cable)

Display

switching status: 1 x LED, green; input signal: 1 x LED, yellow

Degree of protection

IP 67

Weight

302 g
