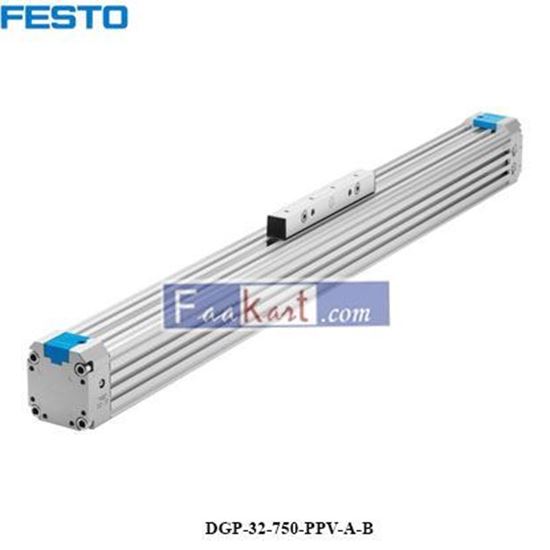

DGP-32-750-PPV-A-B Festo Air Cylinder

Stroke: 10 mm - 3000 mm
Piston diameter: 32 mm
Type code: DGP: DGPI: DGPIL: DGPL
Cushioning: Pneumatic shock absorber, hard characteristic curve: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Guide: Recirculating ball bearing guide: Basic guide: Heavy-duty guide: Sliding guide
Driver principle: Positive locking (slot)
Position sensing: With linear potentiometer attached: For proximity sensor: With integrated linear potentiometer
Variants: Standard slide: Protected version: Clamping unit, bottom version: Front clamping unit: Rear clamping unit: Extended slide: Supply port at both ends
Operating pressure: 2 bar - 8 bar
Mode of operation: Double-acting
ATEX category gas: II 2G
Type of ignition protection for gas: Ex h IIC T4 Gb X
Explosive ambient temperature: -10Celsius Degree <= Ta <= +60Celsius Degree
Explosion prevention and protection: Zone 2 (ATEX): Zone 1 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Corrosion resistance class (CRC): 1 - Low corrosion stress: 2 - Moderate corrosion stress: 0 - No corrosion stress
Degree of protection: IP65
Ambient temperature: -10 to 60 Celsius Degree
Cushioning length: 20 mm
Theoretical force at 6 bar, retracting: 483 N
Theoretical force at 6 bar, advancing: 483 N
Alternative connections: See product drawing
Pneumatic connection: G1/8
Note on materials: Free of copper and PTFE
Cover material: Coated: Cast aluminum
Seals material: TPE-U(PU): NBR
Housing material: Aluminum: Anodized
