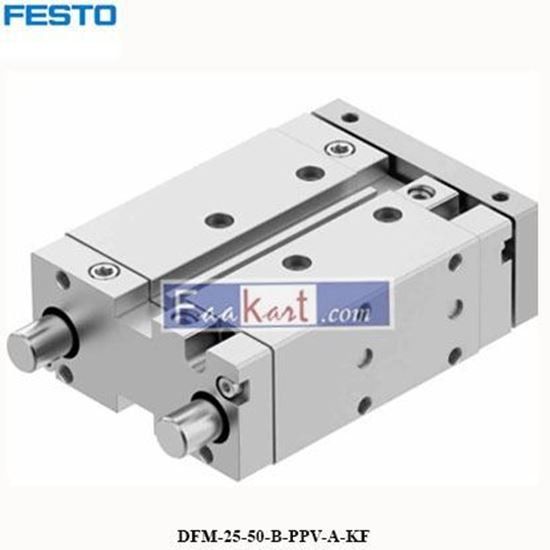

DFM-25-50-B-PPV-A-KF FESTO 604962 PNEUMATIC GUIDED DRIVE

DFM-25-50-B-PPV-A-KF FESTO 604962 PNEUMATIC GUIDED DRIVE

Be the first to review this product

Manufacturer: Festo

SKU: PCM1361

Old price: 685.00 (SAR)

Price: 585.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Material: piston rod		High-alloy stainless steel
Material seals		NBR
Pneumatic connection		G1/8
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		295 N
Impact energy in end positions		0,3 J
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Mode of operation		Double-acting
Position detection		Via proximity switch
Guide		Recirculating ball bearing guide
Cushioning		Pneumatic cushioning, adjustable at both ends
Piston diameter		25 mm

Corrosion resistance class CRC		0: No corrosion stress
Material cover		Wrought aluminium alloy
alternative connections		See product drawing
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		247 N
Ambient temperature		-5 °C ... 60 °C
Material housing		Wrought aluminium alloy
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		0,15 MPa ... 1 MPa
Design		Guidance
Mounting position		optional
Operating mode, drive unit		Yoke
Stroke		50 mm
