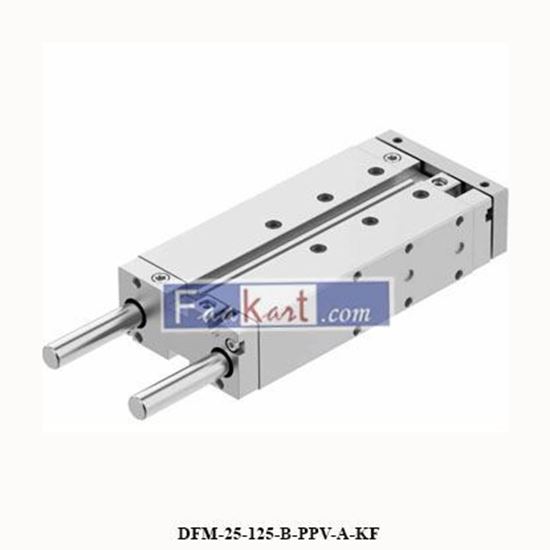

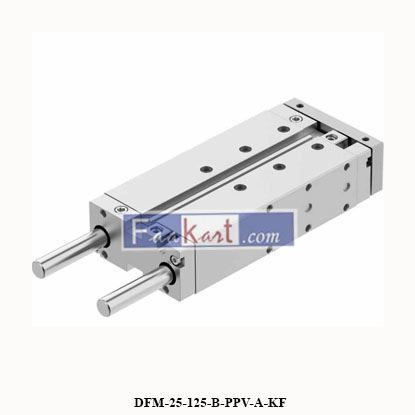

DFM-25-125-B-PPV-A-KF FESTO Guided drive 8161429

DFM-25-125-B-PPV-A-KF FESTO Guided drive 8161429
Manufacturer: Festo
SKU: PCM1359
1,655.00 (SAR)
1,450.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Material piston rod   High-alloy stainless steel
Material seals   NBR
Note on materials   RoHS-compliant
alternative connections   See product drawing
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke   247 N
Ambient temperature   -5 °C ... 60 °C
Corrosion resistance class CRC   0 - No corrosion stress
Operating medium   Compressed air to ISO 8573-1:2010 [7:4:4]
Operating pressure   1,5 bar ... 10 bar
Design   Guidance
Mounting position   optional
Operating mode, drive unit   Yoke
Stroke   125 mm
Material housing   Wrought aluminium alloy
Material cover   Wrought aluminium alloy
Pneumatic connection   G1/8
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke   295 N
Impact energy in end positions   0,3 J
LABS (PWIS) conformity   VDMA24364-B1/B2-L
Note on operating and pilot medium   Lubricated operation possible (in which case lubricated operation will always be required)
Mode of operation   Double-acting
Position detection   Via proximity switch
Guide   Recirculating ball bearing guide
Cushioning   Pneumatic cushioning, adjustable at both ends
Piston diameter   25 mm
