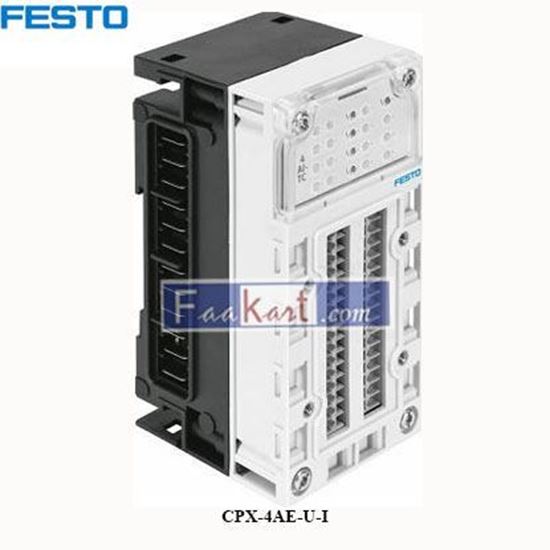

CPX-4AE-U-I Festo Automation Analogue module

Technical Data

• Dimensions (W x L x H)(incl. interlinking block and connection technology) 50 x 107 x 50 mm
• Number of inputs4
• DiagnosisWire break per channel Limit value violation per channel Parameterisation error Overflow/underflow Input overload Short circuit of sensor supply
• ParameterisationData format Forcing per channel Limit monitoring per channel Measured value smoothing Sensor supply active Signal range per channel Behaviour after short circuit Behaviour after input overload Wire break monitoring per channel
• LED display1 Group diagnostics 4 channel diagnostics
• Internal cycle time500 µs
• Repetition accuracy0.1% at 25ºC
• Fuse protection (short circuit)Internal electronic fuse
• Operational voltage range DC18 V ... 30 V
• Intern power consumption nominal operating voltageTyp. 50 mA
• Operating error limit related to the ambient temperature range±0.3%
• Basic error limit at 25 °C±0.2%
• Nominal DC operating voltage, load voltage24 V +/-2%
• Nominal operating voltage DC24 V
• Isolation channel - internal busYes, without using the internal sensor supply
• Isolation channel - channelno
• Corrosion resistance class CRC1 - Low corrosion stress (when installed)
• Storage temperature-20 °C ... 70 °C
• Degree of protectionDependent on the manifold block
• Ambient temperature-5 °C ... 50 °C
• Product weight46 g
• Data format15 bits + prefix Scalable to 15 bits
• Max. cable length30 m Shielded
• Sensor type+/-10 V +/-20 mA +/-5 V 0 - 10 V 0 - 20 mA 1-5 V 4 - 20 mA
