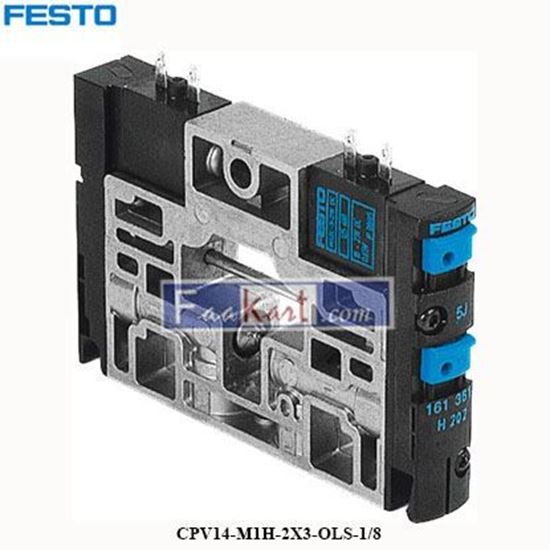

CPV14-M1H-2X3-OLS-1/8 FESTO Solenoid valve 161363

Technical Data

• Valve function2x3/2-way, open, monostable
• Type of actuationElectric
• Valve size14 mm
• Standard nominal flow rate800 l/min
• pneumatic working portG1/8
• Operating voltage24V DC
• Operating pressure-0.09 MPa ... 1 MPa
• Operating pressure-0.9 bar ... 10 bar
• DesignPiston gate valve
• Type of resetPneumatic spring
• Degree of protectionIP65
• Nominal size6 mm
• Exhaust-air functionWithout flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyExternal Internal
• Flow directionNon-reversible
• Symbol00991811
• lapPositive overlap
• Pilot pressure0.3 MPa ... 0.8 MPa
• Pilot pressure3 bar ... 8 bar
• b value0.42
• C value3.2 l/sbar
• Switching time off30 ms
• Switching time on24 ms
• Duty cycle100% in conjunction with holding current reduction
• Electrical power consumption0.65 W
• Max. positive test pulse with 0 signal1400 µs
• Max. negative test pulse with 1 signal400 µs
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-20 °C ... 40 °C
• Media temperature-5 °C ... 50 °C
• Ambient temperature-5 °C ... 50 °C
• Product weight120 g
• Type of mountingWith through-hole
• Pilot air port 12/14Common line
• Pilot exhaust port 82/84Common line
• Pneumatic connection, port 1Common line
• Pneumatic connection, port 11Common line
• Pneumatic connection, port 2G1/8
• Pneumatic connection 3/5 combinedCommon line
• Pneumatic connection, port 4G1/8
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingDie-cast aluminium Brass POM PPS Steel
