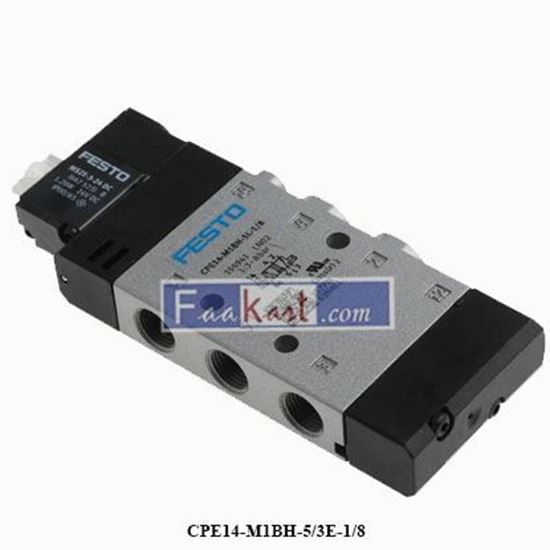

CPE14-M1BH-5/3E-1/8 FESTO Solenoid valve 196935

Technical Data

• Valve function5/3 exhausted
• Type of actuationElectric
• Construction width14 mm
• Standard nominal flow rate700 l/min
• pneumatic working portG1/8
• Operating voltage24V DC
• Operating pressure0.3 MPa ... 0.8 MPa
• Operating pressure3 bar ... 8 bar
• DesignPiston gate valve
• Type of resetMechanical spring
• Approvalc UL us - Recognized (OL)
• Maritime classificationSee certificate
• Degree of protectionIP65 With plug socket To IEC 60529
• Nominal size6 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting via accessory Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyInternal
• Flow directionNon-reversible
• Symbol00991036
• Valve position codeInscription label holder
• lapPositive overlap
• Switching time off42 ms
• Switching time on20 ms
• Duty cycle100% in conjunction with holding current reduction
• Max. positive test pulse with 0 signal1200 µs
• Max. negative test pulse with 1 signal900 µs
• Characteristic coil data24 V DC: 1.28 W
• Permissible voltage fluctuations-15%/+10%
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Media temperature-5 °C ... 50 °C
• Ambient temperature-5 °C ... 50 °C
• Product weight120 g
• Electrical connection2-pin
• Type of mountingWith through-hole
• Pilot exhaust port 82M3
• Pilot exhaust port 84M3
• Pilot air port 12M3
• Pilot air port 14M3
• Pneumatic connection, port 1G1/8
• Pneumatic connection, port 2G1/8
• Pneumatic connection, port 3G1/8
• Pneumatic connection, port 4G1/8
• Pneumatic connection, port 5G1/8
• Note on materialsRoHS-compliant
• Material sealsNBR
• Material housingDie-cast aluminium
