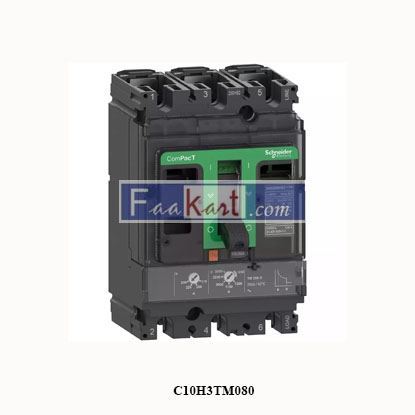

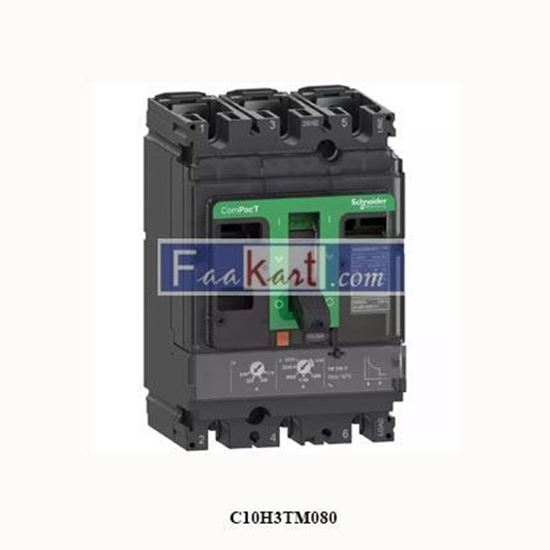

This ComPacT NSX100H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 80A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100H is part of Schneider Electric EcoStruxure Power architecture.
Specifications
Main
Range |
ComPacT new generation |
Product name |
ComPacT NSX new generation |
Device short name |
NSX100H |
Product or component type |
Circuit breaker |
Device application |
Distribution |
Poles description |
3P |
Protected poles description |
3D |
[In] rated current |
80 A at 40 °C |
[Ue] rated operational voltage |
690 V AC 50/60 Hz |
Network type |
AC |
Network frequency |
50/60 Hz |
Suitability for isolation |
Yes conforming to EN/IEC 60947-2 |
utilisation category |
Category A |
[Icu] rated ultimate short-circuit breaking capacity |
100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
Performance level |
H 70 kA 415 V AC |
Trip unit name |
TM-D |
Trip unit technology |
Thermal-magnetic |
Trip unit protection functions |
LI |
control type |
Toggle |
Circuit breaker mounting mode |
Fixed |
