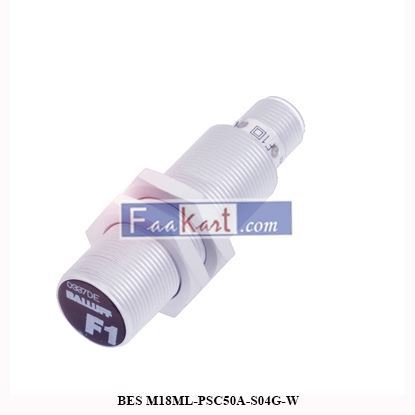

BES02KJ | Balluff | BES M18ML-PSC50A-S04G-W Inductive sensor

Manufacturer: Balluff

Product No : BES02KJ

Product type : BES M18ML-PSC50A-S04G-W Inductive sensor

Dimensions : M18x1

Connection : Connector, M12x1-S04

Output function : PNP, Normally open (NO)

Supply voltage : 10.0…30.0 V

Special Properties : weld immune
Factor 1
magnetic field immune

Mech. installation condition : Flush (shielded)

Rated operating distance Sn [mm] : 5.00 mm

Additional features : Weld-spatter resistant
Factor 1

Additional text : The sensor is functional again after the overload has been eliminated.

Approvals / Conformity : cULus
CE
EAC

Basic standard : IEC 60947-5-2

Diagnostic Coverage : 0 %

Enclosure Type per IEC 60529 : IP67

Functional Safety : No

Function indicator : Yes

Magnetic field immune : immune to magnetic DC and AC fields

Mission Time : 20 a

MTTF (40°C) : 320 a

Polarity reversal protected : Yes

Power indicator : No

Product group : Inductive sensor

Protection Class : II

Short circuit protected : Yes

Trademark : Factor 1

Connection type : Connector

Eff. operating current Ie : 200 mA

Eff. operating voltage Ue DC : 24.0 V

Electrical version : DC, direct current

Load capacitance max. (at Ue) : 1.000 µF

Magnetic field strength : 100 kA/m

Max. no-load cur. Io undamped : 10.0 mA

Minimum operating current Im : 0 mA

No-load current Io damped max. : 15.0 mA

Operating voltage UB max. DC [V] : 30.0 V

Operating voltage UB min. DC [V] : 10.0 V

Rated insulation voltage Ui : 250 VAC

Rated short circuit current : 100 A

Ripple max. (% of Ue) : 10 %

Switching freq. f max. (at Ue) : 2500 Hz

Switching function : Normally open (NO)

Switching output : PNP

Voltage drop static max. : 2.5 V

Ambient temperature Ta max. : 70 °C

Ambient temperature Ta min. : -25 °C

Assured operating distance Sa : 4.00 mm

Connector type : M12x1-S04

Depth : 65.0 mm

Diameter d1 : M18x1

Eff. operating distance Sr : 5.00 mm

Housing material : CuZn

Mech. installation condition : Flush (shielded)

Mounting length : 50.0 mm

Rated operating distance Sn [mm] : 5.00 mm

Sensing face material : LCP + PTFE

Surface protection : PTFE coating

Tightening torque : 12 Nm
