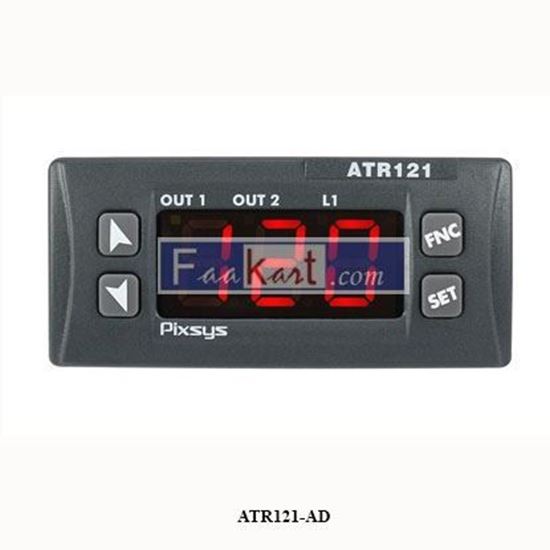

ATR121-AD PIXSYS Temperature controller

Item	Unit Price	Unit Tax	Subtotal	Action
ATR121-AD PIXSYS Temperature controller	1,229.00 (SAR)	184.35	1,413.35 (SAR)
			Shipping	0.00
			Total	1,413.35 (SAR)

Contact Informations

Shipping Method

Full Name: *

Email: *

Country: *

Address 1:

Phone number:

Manufacturer	PIXSYS
Type of module	regulator
Kind of temperature sensor	Ni100, NTC, Pt100, Pt500, Pt1000, PTC, thermocouple J, thermocouple K, thermocouple R, thermocouple S
Controlled parameter	temperature
Kind of output 1	SPDT
Kind of output 2	SPST-NO
Kind of output 3	SSR
Kind of input 1	0...6kΩ, 0...10V DC, 0...20mA, 0...150kΩ, 4...20mA, universal
Regulation for output 1	AUTOTUNING, ON-OFF, ON-OFF with hysteresis, PID
Mounting	on panel
Output 1 electrical parameters	250V AC / 8A
Output 2 electrical parameters	250V AC / 5A
Output 3 electrical parameters	8V DC / 20mA
Controlled parameter range	-99.9...999
Operating temperature	0...40°C
The programming method	foil keypad
Body dimensions	77x35x53mm
Mounting hole diameter	70.5x28.5mm
IP rating	IP54
Kind of display used	LED
Display parameters	3 digit
Display height 1	14mm
Additional functions	one control input and one alarm input can be used simultaneously
Manufacturer series	ATR121
