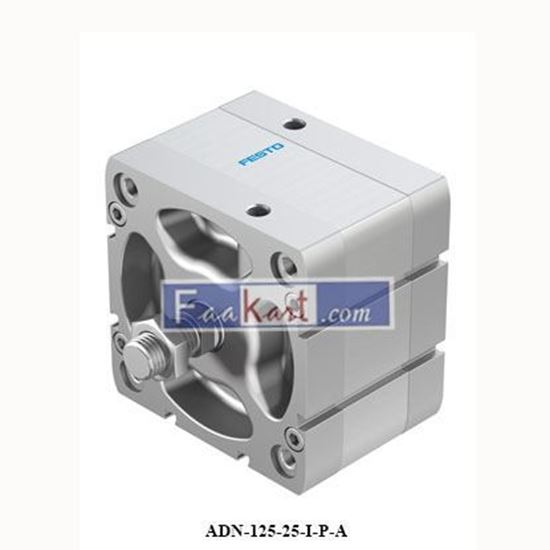

ADN-125-25-I-P-A Festo Air Cylinder 536393

Stroke: 1 mm - 500 mm
Piston diameter: 125 mm
Type code: ADN
Based on norm: ISO 21287
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Design: Profile barrel: Piston: Piston rod
Position sensing: For proximity sensor
Variants: Continuous, hollow piston rod: Special thread on piston rod: Constant, slow movement: Explosion protection certification (ATEX): Through piston rod: Piston rod at one end: Laser etched rating plate: High corrosion protection: With anti-twist protection: Low friction: Extended piston rod: Heat-resistant seals max. 120Celsius Degree: Increased service life: Extended external thread piston rod
Operating pressure: 0.6 bar - 10 bar
Mode of operation: Double-acting
ATEX category gas: II 2G
Type of ignition protection for gas: c T4
ATEX category for dust: II 2D
Type of (ignition) protection for dust: c 120Celsius Degree
Explosive ambient temperature: -20Celsius Degree <= Ta <= +60Celsius Degree
Explosion prevention and protection: Zone 2 (ATEX): Zone 21 (ATEX): Zone 22 (ATEX): Zone 1 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress: 3 - High corrosion stress
Ambient temperature: -20 to 120 Celsius Degree
Theoretical force at 6 bar, retracting: 7069 N
Theoretical force at 6 bar, advancing: 7069 N - 7363 N
Moving mass at 0 mm stroke: 1080 g
Additional weight per 10 mm stroke: 117 g
Basic weight with 0 mm stroke: 2880 g
Additional moving mass per 10 mm stroke: 39 g
Type of mounting: With internal thread: With accessories: With through-hole: Optionally:
Pneumatic connection: G1/4
Note on materials: RoHS-compliant
Cover material: Anodized: Aluminum
Piston rod material: High-alloy steel
Material of cylinder barrel: Wrought aluminum alloy: Smooth anodized
