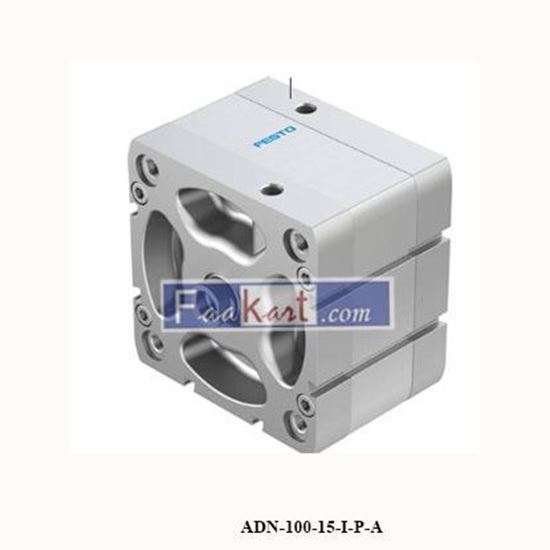

Stroke [mm] |
15 |
Piston diameter |
100 mm |
Piston rod thread |
M12 |
Dampening |
P: Elastic silencer rings / plates double-sided |
installation position |
arbitrary |
Complies to standard |
ISO 21287 |
Piston rod end |
Female thread |
Position detection |
For proximity switch |
Variants |
One-sided piston rod |
Operating pressure [bar] |
0.6 to 10 |
Principle of operation |
double acting |
Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium |
Oiled operation possible (required in further operations) |
Corrosion resistant class KBK |
2 - moderate corrosion stress |
ambient temperature [°C] |
-20 to 80 |
Impact energy at the end positions [J] |
2,50 |
Theoretical force at 6 bar, Return flow [N] |
4.524 |
Theoretical force at 6 bar, flow [N] |
4.712 |
Moving mass at 0 mm stroke [g] |
570 |
Weight supplement per 10 mm stroke [g] |
98 |
Base weight at 0 mm stroke [g] |
2.154 |
Supplement moved mass per 10 mm stroke [g] |
25 |
Fastening type |
With throughway bores With female thread With Accessories Selectively: |
Pneumatic connection |
G1/8 |
Material information |
RoHs compliant |
Cover material |
Aluminium die casting Coated |
Seals material |
TPE-U(PUR) |
Piston rod material |
High-alloyed steel |
Cylinder tube material |
Aluminium wrought alloy Smooth anodised |
