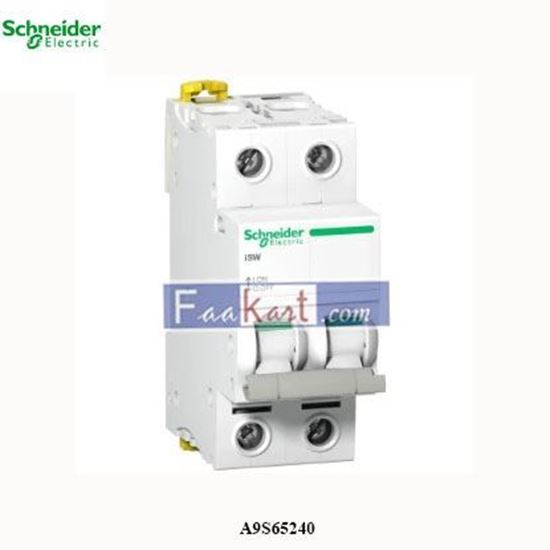

A9S65240 SCHNEIDER Switch Disconnector ISW - 2P - 40 A - 415 V

switch disconnector iSW
-  2P
-  40 A
-  415 V.
Label :  iSW
-  range of product :  iSW 40...125
-  utilisation category :  AC
- 22A
-  range :  Acti 9
-  suitability for isolation :  yes
-  product name :  Acti 9 iSW
-  product or component type :  switch disconnector
-  device short name :  iSW
-  device application :  isolation,control
-  poles description :  2P
-  Range Presentation :  With exclusive features, Acti 9 iSW DIN rail switches are definitely geared to absolute safety and improved continuity of service.
-  VisiSafe :  for safe operation and maintenance work on circuit protection.
-  Class-2 insulation :  continuous safety for operators and unqualified personnel.
-  Rating :  20 to 125 A
-  Compliance with standards :  EN 60669-1, IEC 669-1 for iSW control switches with indicator light and EN 60669-2-4, IEC 669-2-4 for iSW control switches without indicator light.
-  Compliance with standard IEC 947-3 for iSW switch disconnectors 40 to 125 A
-  Suitable for isolation in accordance with industrial standard IEC 60947-2
-  48 V DC application
-  Short-circuit withstand :  20 x In for 1 s
-  Number of operating cycles :  300,000 for iSW 20 and 32 A; 50,000 for iSW 40 to 125 A
-  Option :  state indication; sealable terminal shield; rotary handle; padlocking device,etc.
-  For more information click here If you like this product see also  : Acti 9 range for low voltage DIN rail system up to 63 A
Acti 9 iC60 DIN rail Miniature Circuit Breaker (MCB),
-  Range Benefits :
-  Easy to select, with a wide range compliant with DIN rail standard
-  Peace of mind with a complete modular system
-  Consistent with the entire Acti 9 offer
-  Opening and closing of circuits under load
-  Range Application Presentation :
-  Control and monitoring of electrical circuits in all industrial and tertiary buildings.
