Picture of A9N61519 Schneider Electric Miniature circuit breaker

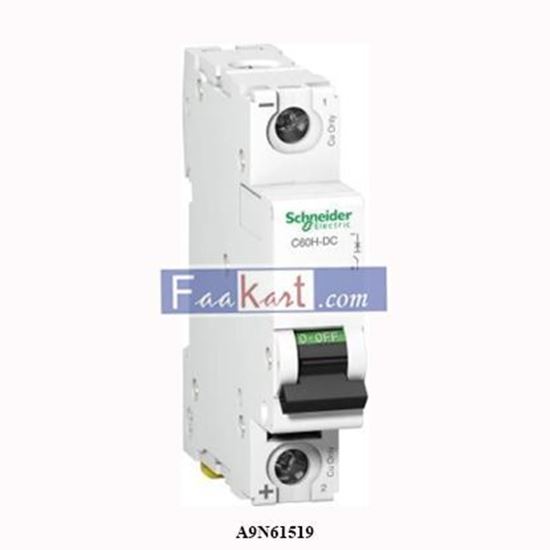

A9N61519 Schneider Electric Miniature circuit breaker

A9N61519 miniature circuit breaker, C60H, 1 pole, 63 A - C curve
Be the first to review this product
Manufacturer: Schneider
SKU: RELR22241024
250.00 (SAR)
148.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Description

This Acti9 C60H-DC is a low-voltage direct current miniature circuit breaker (MCB). It has 1P, rated current 63A, and a C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to EN 60947-2 standard and 10kA at 220VDC conforming to EN 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects the circuit against short circuits and overload current. It offers VisiTrip for safety during maintenance and VisiSafe to reduce intervention time. The Acti9 C60H-DC is used in direct current circuits (industrial control and automation, transport, renewable energy). This device is dedicated to industrial control, automation, transport, and renewable energy applications. It has an electrical endurance going up to 6000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 250VDC. The Ui-rated insulation voltage is 500VDC. The Uimp-rated impulse withstand voltage is 6 kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Its width is 2 pitches of 9 mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The weight is 0.128 kg. According to the IEC 60529 standard, the degree of protection is IP20 and IP40 in the enclosure. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
