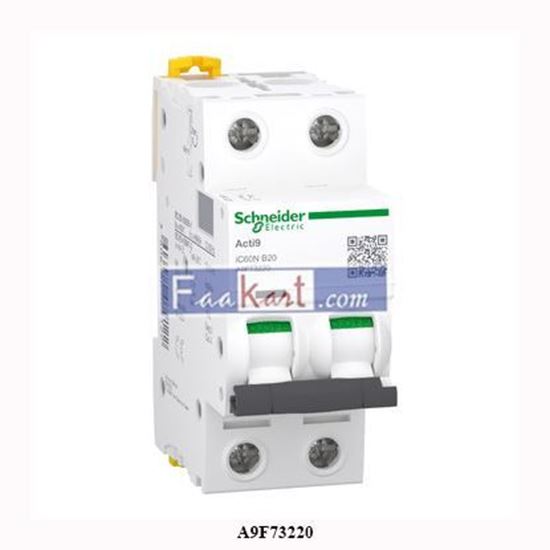

Picture of A9F73220 Schneider Electric Miniature circuit breaker

A9F73220 Schneider Electric Miniature circuit breaker

A9F73220 Miniature circuit breaker (MCB), Acti9 iC60N, 2P, 20A, B curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
Be the first to review this product
Manufacturer: Schneider
SKU: RELR13241018
117.00 (SAR)
88.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Description

This Acti9 iC60N is a low-voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 20A rated current, and a B tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuits and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism, independent of manual operation, improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui-rated insulation voltage is 500 VAC. Its limitation class 3 (according to EN/IEC 60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 4 pitches of 9 mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 78.5mm. The weight is 0.25 kg. According to the IEC 60529 standard, the degree of protection is IP20 and IP40 in the enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
