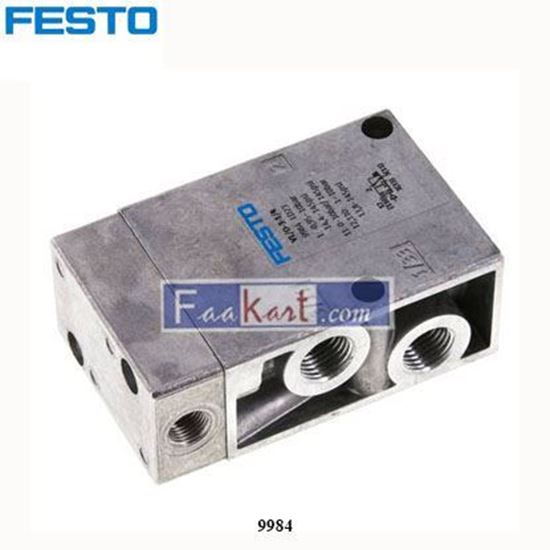

Valve function |
3/2 open/closed monostable |
Actuation type |
pneumatic |
Build.width [mm] |
30,5 |
Normal nominal flow [l/min] |
800 |
Operating pressure [bar] |
-0.95 to 10 |
Construction set up |
Plate seat |
Reset mode |
Mechanical spring |
Nominal width [mm] |
7 |
Exhaust function |
Can be throttled |
Sealing principle |
Soft |
installation position |
arbitrary |
Control type |
Direct |
Control air supply |
external |
Flow direction |
Reversible |
Überdeckung |
negative Überdeckung |
Control pressure [bar] |
1 to 10 |
Shifting time off [ms] |
26 |
Shifting time on [ms] |
7 |
Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium |
Oiled operation possible (required in further operations) |
Corrosion resistant class KBK |
1 - low corrosion stress |
Bearing temperature [°C] |
-20 to 60 |
Medium temperature [°C] |
-10 to 60 |
control medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
ambient temperature [°C] |
-10 to 60 |
Product weight [g] |
230 |
Fastening type |
With throughway bores Selectively: on terminal strip |
Control air 110 connection |
G1/8 |
Control air 12 connection |
G1/8 |
Pneumatic connection 1 |
G1/4 |
Pneumatic connection 11 |
G1/4 |
Pneumatic connection 2 |
G1/4 |
Pneumatic connection 3 |
G1/4 |
Pneumatic connection 33 |
G1/4 |
Material information |
RoHs compliant |
Seals material |
NBR |
Housing material |
Aluminium die casting |
Pitch dimension [mm] |
32 |
Protection category |
IP65 |
