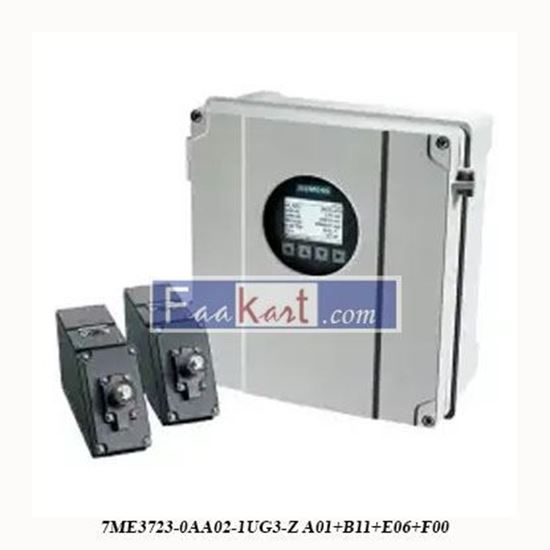

7ME3723-0AA02-1UG3-Z A01+B11+E06+F00 SIEMENS flow meter

SITRANS FS230 Clamp-On Highly accurate flow meter in the industrial sector for water supply, for crude oil or petroleum products or for gas transport in pipelines Transmitter FST030 Sensor FSS200 for gas/liquid on steel /stainless steel pipes, optimized for average medium temperature below 80°C (176°F), specification range: -40°C to +121°C (-40°F to 250°F) Outer pipe diameter >13 - 19 mm (0.5 - 0.75 in) Pipe wall thickness >1.5 - 2.0 mm (0.06 - 0.08 in) Frames/tracks (aluminum) includes straps (frames and spacer-bar on pipes bigger 125 mm (5 inch)) Single Path (one sensor pair) Sensor: 7ME39505LB11 (FSS200, Uni A1C, Liquid) Standard Wall mount enclosure with internal DSL-modul, aluminum - epoxy coated IP 67, NEMA 4X, internal universal power supply 24 - 240 V DC/AC (50 / 60Hz), for 1 - 2 path 9 cable entries M20x1.5 thread No EX-approval Illuminated display sensor keys Cable glands polyamide M20x1.5, 5 + 6 blind glands Standard Industry application (Liquids, e.g. water) HART, 4-20mA, active/passive, non Ex No optional inputs and outputs Sensor cable set 1-pair to external DSL / transmitter, Coax cable submersible, 10 m (32.8 ft), with F-connector, shortenable, terminated on one end side, incl. cable gland Nylon M20 x1.5, gland sensor plastic, F-connector Enable Mass storage device function for SD-card by USB
