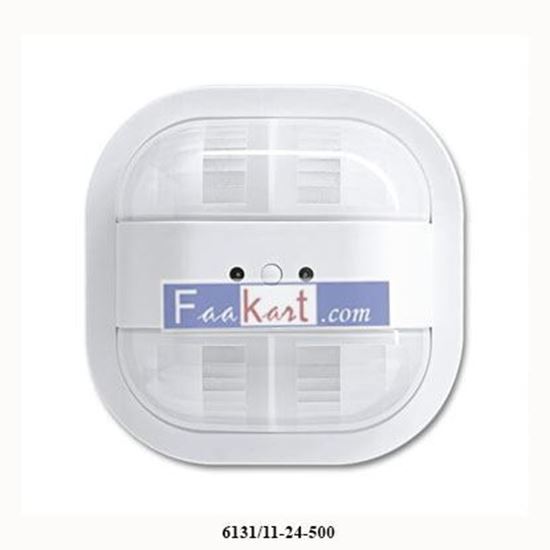

6131/11-24-500 ABB 2CKA006132A0299 Ceiling PIR Detector Presence Detector

With integrated KNX bus coupler. For dimming/brightness of the rules to a defined value in a designated collection area. HVAC function with up to two independent channels for controlling heating and/or cooling systems and ventilation systems in the designated collection area. Constant light controller with up to two independent channels. Constant light controller with max. 2 outputs for dimming daylight control/rules of two rooflights in the room. Constant light switch with up to two independent channels. Constant light switch with max. 2 outputs for brightness-dependent switching of two light bands in the area. 10 freely programmable IR channels (blue and/or white) Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.). Weighting of up to 2 external brightness values ​​and the internal brightness sensor possible. Detection range (for installation height 3 m): circular, 10 m diameter. Surveillance density: 72 sectors with 640 switching segments.
