  • 5SV33466KK12 Siemens Residual current circuit breaker (RCCB) 5SV3346-6KK12

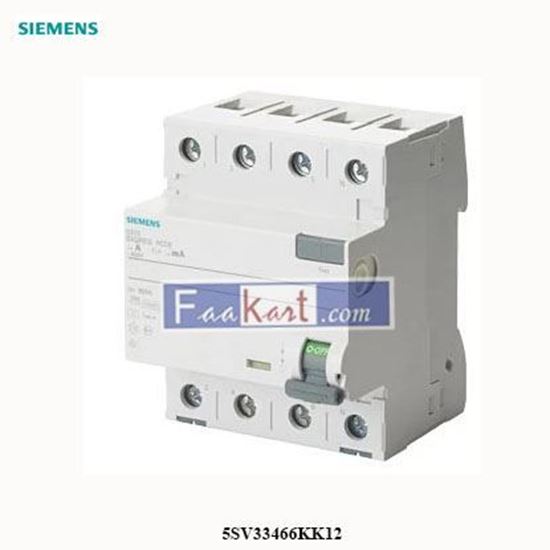

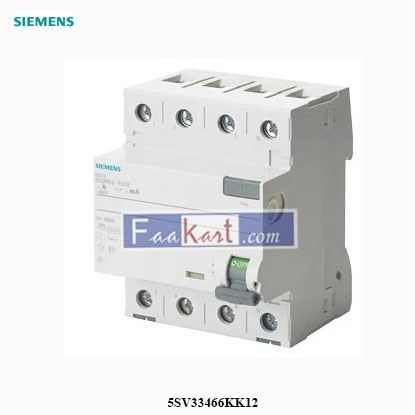

Picture of 5SV33466KK12 Siemens Residual current circuit breaker (RCCB) 5SV3346-6KK12

5SV33466KK12 Siemens Residual current circuit breaker (RCCB) 5SV3346-6KK12

5SV33466KK12 Siemens Residual current circuit breaker (RCCB) Siemens Residual current circuit breaker (RCCB) RCCB, 4-pole, type A, In: 63 A, 30 mA, Un AC: 400V, SIGRES
Be the first to review this product
Manufacturer: SIEMENS
SKU: PCM1639
1,450.00 (SAR)
1,373.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Datasheet

Number of poles
4
Rated voltage (V)
400
Rated current (A)
63
Rated fault current (A)
0.03
Mounting method
DIN rail
Leakage current type
A
Selective protection
No
Short-circuit breaking capacity (Icw) (kA)
10
Surge current capacity (kA)
1
Frequency
50 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Construction size (according to DIN 43880)
1
Width in number of modular spacings
4
Built-in depth (mm)
70
Short-time delayed tripping
No
With interlocking device
Yes
Ambient temperature during operating (°C)
-25 - 45
Connectable conductor cross section multi-wired (mm²)
0.75 - 35
Connectable conductor cross section solid-core (mm²)
0.75 - 35
Voltage type
AC
Explosion-proof
No
