  • 5SV33116KK12 Siemens Residual current operated circuit breaker 5SV3311-6KK12

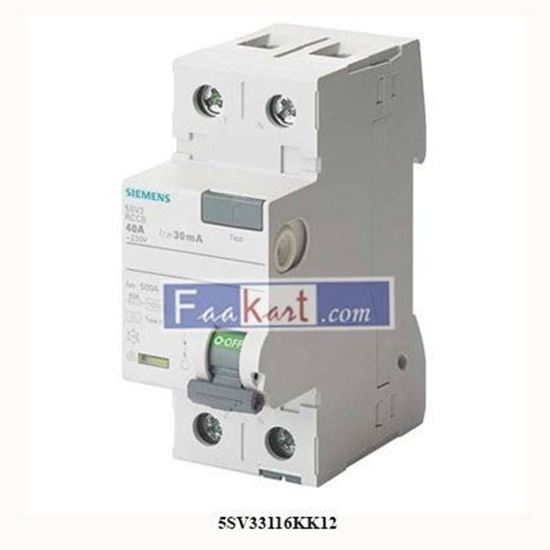

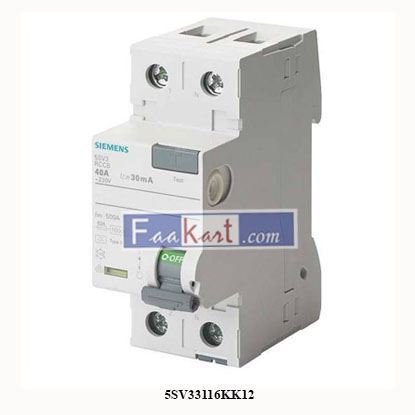

Picture of 5SV33116KK12 Siemens Residual current operated circuit breaker 5SV3311-6KK12

5SV33116KK12 Siemens Residual current operated circuit breaker 5SV3311-6KK12

SIEMENS 5SV33116KK12 Residual current operated circuit breaker
Be the first to review this product
Manufacturer: SIEMENS
SKU: PCM1650
655.00 (SAR)
520.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Residual current operated circuit breaker, 2-pole, type A, In: 16 A, 30 mA, Un AC: 230 V, SIGRES (harsh ambient conditions)

DIFFERENTIAL SWITCH TYPE A 16A 1+N POL. 30MA 230V 2MOD. SIGRES. Cancelations and returns limited. Consult conditions.



Technical data

Residual current operated circuit breaker, 2-pole, type A, In: 16 A, 30 mA, Un AC: 230 V, SIGRES (harsh ambient conditions)
Model
product brand name SENTRON
product designation RCCB
design of the product Instantaneous
product variations SIGRES (harsh ambient conditions)
General technical data
number of poles 2
size of installation devices / according to DIN 43880 1
mechanical service life (switching cycles) / typical 10 000
short-circuit current / of series fuse / maximum permissible 80 A
short-circuit current rating 10 kA
switching function / short-term delayed No
overvoltage category III
Supply voltage
supply voltage / for testing equipment / minimum 195 V
value range / of the supply voltage frequency 50 Hz
value range / of the operating frequency 50 Hz
value range / of the supply voltage / at AC 230 V
Protection class
protection class IP IP20, if the distribution board is installed, with connected conductors
Switching capacity
switching capacity current
● according to IEC 61008-1 / rated value 0.5 kA
Dissipation
power loss [W]
● for rated value of the current / at AC / in hot operating state / per pole 0.7 W
● maximum 1.3 W
Current
tripping fault current / rated value 30 mA
operational current
● at 40 °C / rated value 16 A
● at 45 °C / rated value 16 A
● at 50 °C / rated value 16 A
● at 55 °C / rated value 16 A
● at 60 °C / rated value 16 A
● at 65 °C / rated value 16 A
● at 70 °C / rated value 16 A
● at AC / rated value 16 A
residual current type A
let-through current / permissible 5 200 A
I2t value / permissible 58 000 A²·s
surge current resistance / rated value 1 kA
Product details
product feature / silicon-free Yes
product extension / installable / supplementary devices Yes
Connections
connectable conductor cross-section / solid
● minimum 0.75 mm²
● maximum 35 mm²
connectable conductor cross-section / stranded
● minimum 0.75 mm²
● maximum 35 mm²
tightening torque / with screw-type terminals
● minimum 2.5 N·m
● maximum 3 N·m
Mechanical Design
height 90 mm
width 36 mm
depth 70 mm
installation depth 70 mm
number of modular width units 2
fastening method DIN rail (REG)
mounting position any
Environmental conditions
ambient temperature / during operation
● minimum -25 °C
● maximum 45 °C
ambient temperature / during storage
● minimum permissible -40 °C
● maximum permissible 75 °C
number of test cycles / for environmental testing / according to IEC 60068-2-30 28
