Picture of 5SU13247FP25 Siemens Earth leakage circuit breaker 5SU1324-7FP25

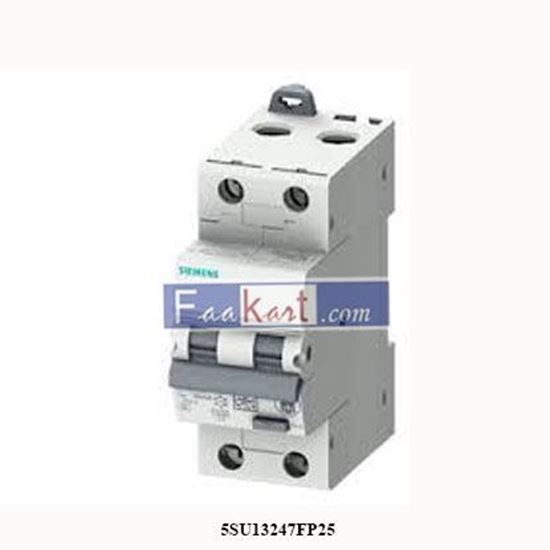

5SU13247FP25 Siemens Earth leakage circuit breaker 5SU1324-7FP25

Siemens Earth leakage circuit breaker RCBO, 10 kA, 2-pole type A, 30 mA, C char, In: 25 A Un: 230 V
Be the first to review this product
Manufacturer: SIEMENS
SKU: PCM1673
765.00 (SAR)
650.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Datasheet

Number of poles (total)
2
Number of protected poles
2
Rated voltage (V)
230
Rated current (A)
25
Rated fault current (A)
0.03
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to IEC 60947-2 (kA)
15
Release characteristic
C
Concurrently switching neutral conductor
Yes
Over voltage category
2
Pollution degree
3
Width in number of modular spacings
2
Built-in depth (mm)
70
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
Yes
Surge current capacity (kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
Yes
Rated insulation voltage Ui (V)
500
Rated impulse withstand voltage Uimp (kV)
4
Rated short-circuit breaking capacity according to EN 61009 (kA)
10
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA)
10
Disconnection characteristic
Undelayed
With interlocking device
Yes
Connectable conductor cross section solid-core (mm²)
1 - 35
Connectable conductor cross section multi-wired (mm²)
1 - 35
Flush-mounted installation
Yes
