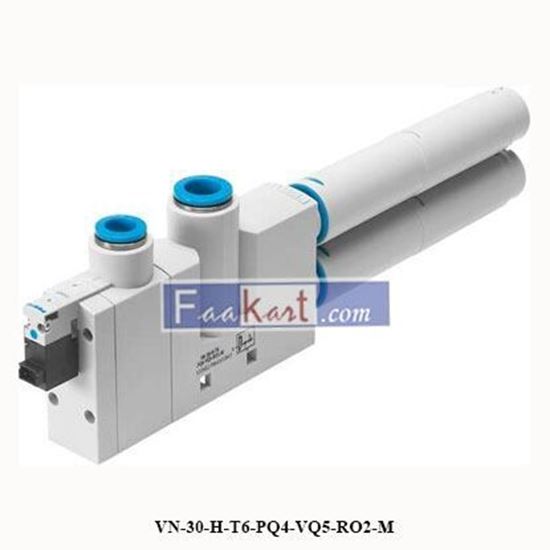

Nominal width laval nozzle [mm] |
3,00 |
Pitch dimension [mm] |
24 |
Construction type silencer type |
open |
installation position |
arbitrary |
Ejector characteristic |
Standard High under-pressure |
Hand assist actuation |
tentative |
Integrated function |
Silencer open Electrical switch on valve |
Construction set up |
T-shape |
Valve function |
2/2 |
Operating pressure for max. suction volume flow [bar] |
3 |
Operating pressure [bar] |
2 to 8 |
Operating pressure for max. vacuum [bar] |
3,7 |
max. vacuum [%] |
93 |
Nominal operating pressure [bar] |
6 |
Max. suction volume current against atmosphere [l/min] |
186,0 |
Venting time for nominal operating pressure [s] |
0,13 |
Operating voltage range DC [V] |
21.6 to 26.4 |
Electrical power consumption [W] |
1,2 |
Power-on time |
100 % |
Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium |
Oiled operation not possible |
Corrosion resistant class KBK |
1 - low corrosion stress |
Medium temperature [°C] |
0 to 50 |
Noise level for nominal operating pressure [dB(A)] |
78 |
Protection category |
IP40 |
ambient temperature [°C] |
0 to 50 |
Product weight [g] |
215 |
electrical connection: |
Plug |
Fastening type |
With throughway bores With Accessories |
Pneumatic connection 1 |
QS-10 |
Pneumatic connection 3 |
Silencer open |
vacuum connection |
QS-12 |
Connection thread material |
Aluminium wrought alloy anodised |
Material information |
LABS containing materials included Copper and PTFE-free RoHs compliant |
Seals material |
NBR |
Capture nozzle material |
POM |
Housing material |
PA reinforced POM reinforced |
Silencer material |
POM Aluminium wrought alloy PU foam |
Screws material |
Steel |
Jet nozzle material |
Aluminium wrought alloy |
Screw connection material |
brass nickel-plated |
