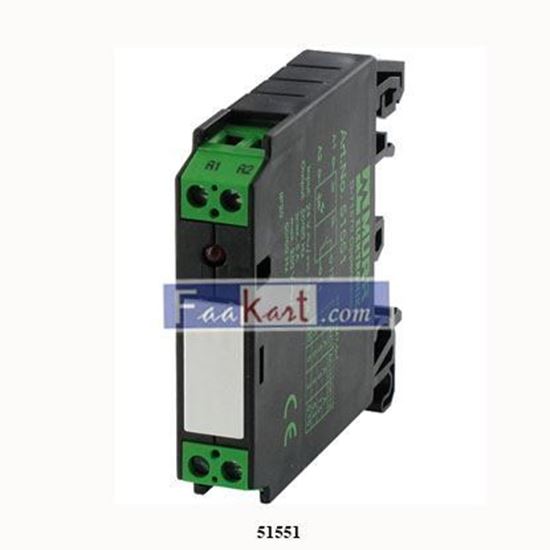

51551 MURR RMM 11/24 Output Relay

The MURR 51551 is a 24V AC output relay with one normally open contact. It is rated for 5 A and features screw terminals. It has a red LED indicator and can be DIN rail mounted. The LED shows the current switching status and suppression is integrated. It has a compact, space saving design, perfect for inside control cabinets.

Specifications

Input

• Connection Voltage / Current- 24V AC/DC (19.2-30V AC/DC), 15 mA
• Display- Red LED

Utilization Category

• AC-1- 5 A (24/110/230 V AC)
• AC-15- 3 A (24/110/230 V AC)
• DC-13- 1.5 A (24 V DC); 0.3 A (110 V DC); 0.15 A (230 V DC)

General Data

• Mechanical Life- 20,000,000 switching cycles / load dependent
• Test Isolation Voltage- 4kV
• Mounting Method- DIN-rail mountable TH35 or G32 (EN 60715)
• Temperature Range- -20 to 50 C (-4 to 122 F)
• Dimensions- 56 x 12 x 64 mm

Output

• Switching Voltage- max 250V AC / 300V DC
• Switching Current per Output- max 5A
• Minimum Load Current- 100 mA
• Power Rating (voltage dependent)- max 1250 VA / 240 W
• Switching Frequency- max 10 Hz
• Contact Material- Ag Ni 0.15 hv; Ag hv
• Energize/release/contact Bounce Time- 10/15/1.5 ms
