Product Description

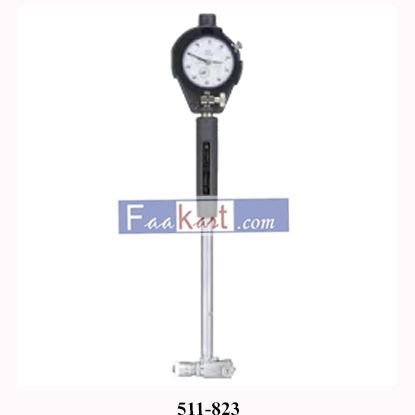

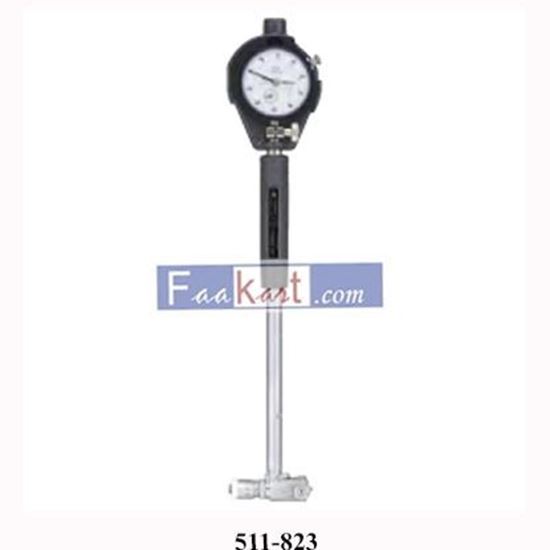

511-823 Mitutoyo Bore Gage with Micrometer Head: 60-100mm (.001mm)
The Mitutoyo 511-823 dial bore gage with micrometer head has the following specifications:
- Range: 60-100mm
- Graduations: .001mm
- Micrometer Head Travel: 10mm
- Sub Anvil: 10mm & 20mm
Features:
- Interchangeable anvil is attached to a micrometer head for accurate dimensional setting.
- Wide measuring range with sub-anvils.
- Carbide ball contact point for durability.
- Extension rods (optional) can be attached for measuring deep holes.
- Optional Setting Rings offer the best method of zero-setting Bore Gages.
Technical Data:
- Accuracy: .002mm
- Indication stability: .001mm
- Graduation: .01mm or .001mm
