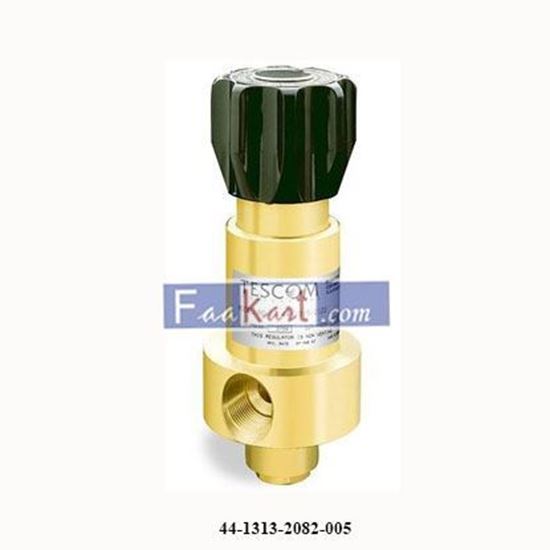

Picture of 44-1313-2082-005 Tescom Pressure reducing regulator

44-1313-2082-005 Tescom Pressure reducing regulator

Tescom 44-1300 series pressure reducing regulator, inlet pressure: 3,750 psig maximum, Outlet Pressure 15-600 psig, 1/2 inch NPT ports, 3/8 inch main valve, Cv 2.0, brass body 1/4 inch NPT inlet and outlet gauge ports
Be the first to review this product
SKU: PCM603
7,650.00 (SAR)
6,546.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Applications:

  • Commercial diving - breathing air
  • Special gas mix regulation hard suit diving
  • High pressure tube trailer gas reduction

Features:

  • Large piston sensor gives excellent sensitivity
  • Balanced valve design assures stable downstream pressure
  • Large hand knob provides fast, low-torque pressure settings
  • Self Venting is standard
  • Spring Loaded
  • Hand Operated

Product Specifications:

  • Body Material: Brass
  • Maximum Operating Pressure: 3750 psig (259 bar)
  • Outlet Pressure Range: 0-600 psig (0-41 bar)
  • Design Proof Pressure: 150 percent of rated pressure
  • Leakage: Bubble-tight
  • Operating Temperature: -15 degrees F to +220 degrees F (-25 degrees C to +104 degrees C)
  • Flow capacity*: 3/8 inch Main Valve: Cv=2.0
  • Port Type: NPT
  • Inlet And Outlet Port Size: 1/2 in. (12.7 mm)
  • Inlet And Outlet Gauge Ports: 1/4 In. (6.35 mm)
  • Modification: Venting with gauge ports
