Picture of 3RS1041-1GW50 SIEMENS | 3RS10411GW50 | Temperature monitoring relay

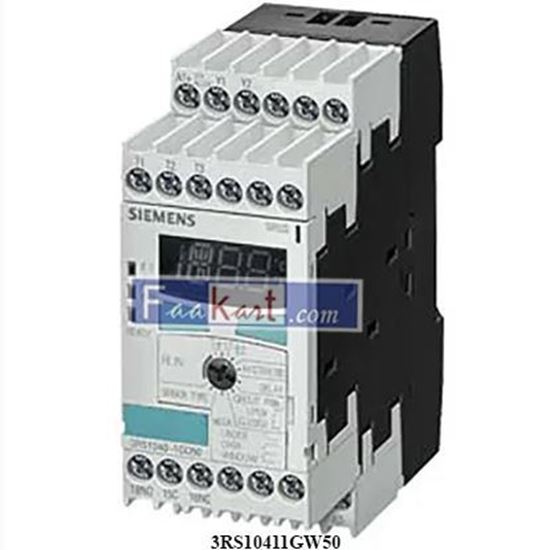

3RS1041-1GW50 SIEMENS | 3RS10411GW50 | Temperature monitoring relay

temperature monitoring relay Pt100/1000 KTY83/84, NTC 3 sensors, 2 threshold values digitally adjustable -50 °C to 500 °C 24 - 240 V AC/DC 2 x 1 CO + 1 NO, width 45 mm screw terminal
Be the first to review this product
Manufacturer: SIEMENS
SKU: RSMN100
2,090.00 (SAR)
2,046.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical data

temperature monitoring relay Pt100/1000 KTY83/84, NTC 3 sensors, 2 threshold values digitally adjustable -50 °C to 500 °C 24 - 240 V AC/DC 2 x 1 CO + 1 NO, width 45 mm screw terminal
product brand name SIRIUS
product designation Temperature monitoring relay
design of the product 2 threshold values, digitally adjustable
product type designation 3RS10
General technical data
power loss [W] maximum 4 W
power loss [V∙A] maximum 7 VA
reference code according to IEC 81346-2 K
measurable temperature
● initial value -50 °C
● full-scale value 500 °C
Substance Prohibitance (Date) 05/01/2012
product function
● error memory Yes
● external reset Yes
design of the sensor connectable PT100/1000, KTY83/84, NTC (resistance sensors)
measurable temperature with KTY-sensor maximum 200 °C
sensor current with KTY-sensor 0.3 mA
Control circuit/ Control
type of voltage AC/DC
control supply voltage 1 at AC
● at 50 Hz 24 ... 240 V
● at 60 Hz 24 ... 240 V
control supply voltage 1
● at DC 24 ... 240 V
supply voltage frequency for auxiliary and control circuit 50 ... 60 Hz
number of measuring circuits 3
Auxiliary circuit
number of NC contacts for auxiliary contacts 0
number of NO contacts for auxiliary contacts 1
number of CO contacts for auxiliary contacts 2
