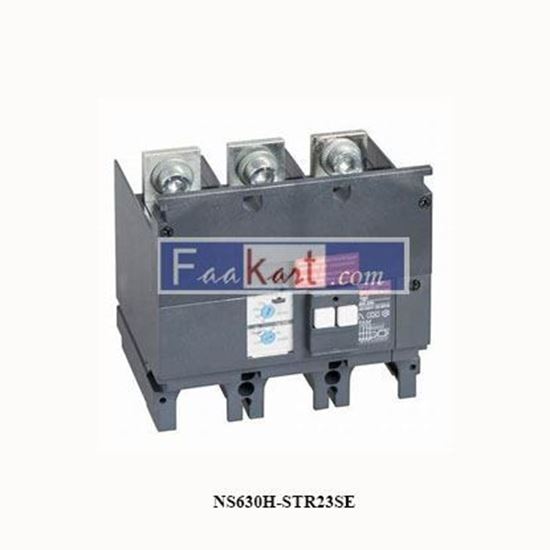

Picture of 32896 SCHNEIDER NS630H-STR23SE 4P 400A VIGI Circuit breaker Compact

32896 SCHNEIDER NS630H-STR23SE 4P 400A VIGI Circuit breaker Compact

circuit breaker Compact NS630H - STR23SE - 630 A - 4 poles 4d
Be the first to review this product
Manufacturer: Schneider
SKU: NSRN643
9,875.00 (SAR)
8,757.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Specifications

Main
range of product Compact NS100...630
Product or component typee Circuit breaker
Device short name Compact NS630H
circuit breaker name Compact NS630H
Device application Distribution
Poles description 4P
Protected poles description 3t
4t
3t + N/2
Neutral position Left
Network type AC
DC
Network frequency 50/60 Hz
[In] rated current 500 A at 65 °C
630 A at 40 °C
[Ui] rated insulation voltage 750 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
750 V DC conforming to IEC 60947-2
Breaking capacity code H
Breaking capacity 100 kA at 240 V AC 50/60 Hz conforming to NEMA AB1 HIC
65 kA at 480 V AC 50/60 Hz conforming to NEMA AB1 HIC
35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation Yes conforming to IEC 60947-2
utilisation category Category A
Trip unit name STR23SE
Trip unit technology Electronic
Trip unit rating 630 A
Protection type Instantaneous short-circuit protection
Protection of the fourth pole
Overload protection (long time)
Short time short-circuit protection
Pollution degree 3 conforming to IEC 60947
