3202ATN9 SKF Double Row Angular Contact Ball Bearing

3202ATN9 SKF Double Row Angular Contact Ball Bearing 15x35x15.9mm

Be the first to review this product

Manufacturer: SKF

SKU: NASR124

Call for pricing

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

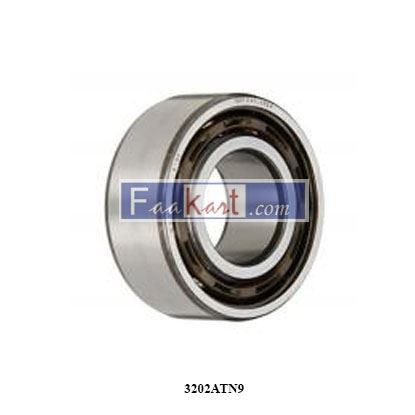

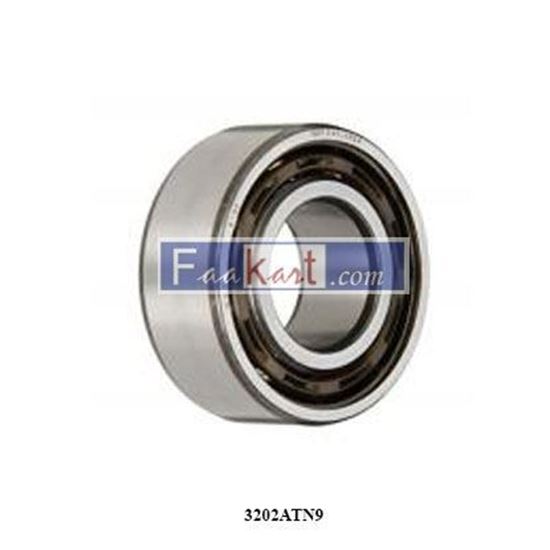

Double row angular contact ball bearing with polyamide cage 15mm inside x 35mm outside x 15.9mm wide

Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

d: 15mm
D: 35mm
B: 15.9mm
Dynamic Load: 11.2kn
Static Load: 6.8kn
Fatigue Load Limit: 0.285kn
Reference Speed: 18 000 r/min
Limiting Speed: 14 000 r/min
Mass: 0.066kg
d2: 20.2mm
D2: 30.7mm
r1r2 Min: 0.6mm
a: 21mm
da Min: 19.4mm
da Max: 20mm
Da Max: 30.7mm
ra Max: 0.6mm
