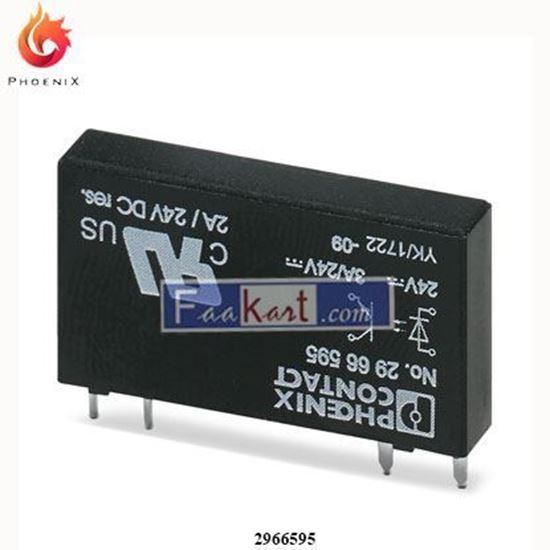

2966595 Phoenix Contact Solid State Relays - PCB Mount OPT-24DC/24DC/2

Plug-in miniature solid-state relay, power solid-state relay, 1 N/O contact, input: 24 V DC, output: 3 ... 33 V DC/3 A

Manufacturer: Phoenix Contact

SKU: PCM1251

Old price: 220.00 (SAR)

Price: 129.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Product type	Single solid-state relay
Set comprises	2905293 RIF-0-OPT-24DC/24DC/2
Set comprises	2905657 RIF-0-OSC-24DC/24DC/2
Operating mode	100% operating factor
Insulation characteristics
Overvoltage category	III
Pollution degree	2
Insulation	Basic insulation

Electrical properties

Maximum power dissipation for nominal condition	0.17 W
Test voltage Input/output	2.5 kV (50 Hz, 1 min., input/output)

Input data

Nominal input voltage UN	24 V DC
Input voltage range in reference to UN	0.8 ... 1.2
Input voltage range	19.2 V DC ... 28.8 V DC
Switching threshold "0" signal, voltage	≤ 10 V
Switching threshold "1" signal voltage	≥ 16 V
Typical input current at UN	7 mA
Typical response time	20 µs (at UN)
Typical turn-off time	300 µs (at UN)
Transmission frequency	300 Hz

Output data

Contact type	1 N/O contact
Design of digital output	electronic
Output voltage range	3 V DC ... 33 V DC
Limiting continuous current	3 A (see derating curve)
Maximum inrush current	15 A (10 ms)
Voltage drop at max. limiting continuous current	≤ 150 mV
Output circuit	2-conductor, floating
Protective circuit	Reverse polarity protection
Protective circuit	Surge protection

Dimensions

Environmental and real-life conditions

Ambient conditions
Degree of protection	RT III
Ambient temperature (operation)	-25 °C ... 60 °C
Ambient temperature (storage/transport)	-25 °C ... 70 °C
