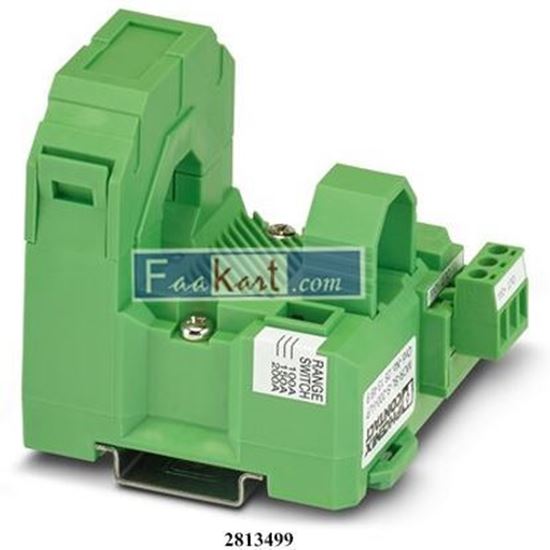

Picture of 2813499 Phoenix Contact MCR-SL-S-200-I-LP - Current transducers

2813499 Phoenix Contact MCR-SL-S-200-I-LP - Current transducers

2813499 MCR-SL-S-200-I-LP - Current transducers MCR current measuring transducer, for measuring sinusoidal and non-sinusoidal alternating currents, input current 0...200 A, loop-powered output with 4...20 mA
Be the first to review this product
Manufacturer: Phoenix Contact
SKU: SHA4064
1,400.00 (SAR)
1,304.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Product properties
Product type Current transducer
Insulation characteristics
Overvoltage category III
Pollution degree 2
Electrical properties
Maximum power dissipation for nominal condition 1 W
Test voltage input/output 4.13 kV AC (50 Hz, 60 s)
Step response (10-90%) < 340 ms
Maximum temperature coefficient < 0.025 %/K
Maximum transmission error < 1 % (of final value)
Rated insulation voltage 300 V AC (to earth)

INPUT DATA-

Signal
Configurable/programmable Yes
Current input signal 0 A ... 200 A
Measurement
Input current range 0 A AC ... 100 A AC
0 A AC ... 150 A AC
0 A AC ... 200 A AC
Setting range for min. input current 0 A AC ... 100 A AC
Setting range for max. input current 0 A AC ... 200 A AC
Overload capacity Depending on laid conductor
Surge strength Depending on through connected conductor
Frequency measuring range 30 Hz ... 6000 Hz
Curve type Sinusoidal and non-sinusoidal
Operate threshold 1 % (of final value)
Output data
Signal: Current
Current output signal 4 mA ... 20 mA
Max. current output signal < 25 mA
Load/output load current output (UB - 12 V) x 350 / 12 A
Connection data
Connection method Screw connection
Stripping length 8 mm
Screw thread M3
Conductor cross section rigid 0.2 mm² ... 2.5 mm²
Conductor cross section flexible 0.2 mm² ... 2.5 mm²
Conductor cross section AWG 24 ... 14
Tightening torque 0.5 Nm ... 0.6 Nm (4,4 ... 5,31 lbf-in.)
