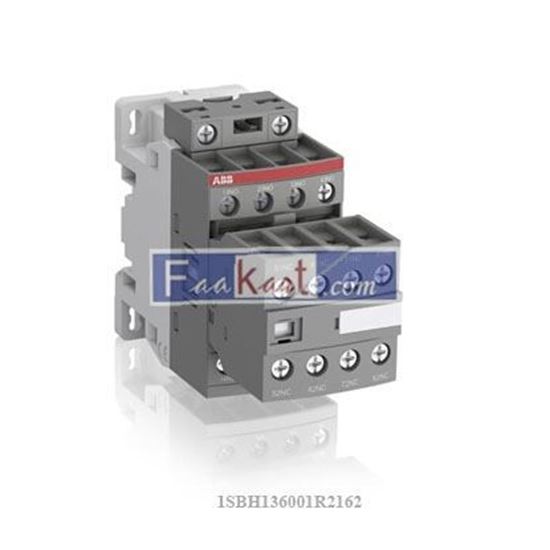

1SBH136001R2162 ABB NFZ62E-21 24-60V50/60HZ 20-60VDC Contactor Relay

NFZ contactor relays are used for switching auxiliary and control circuits. NFZ contactor relays include an electronic coil interface accepting a wide control voltage (Uc min., Uc max). Only four coils cover control voltages between 24...250 V 50/60 Hz or 12...250 V DC. NF contactor relays can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change NFZ contactor relays allow direct control by PLC-output ≥ 24 V DC 500 mA and obtain a reduced holding coil consumption. NFZ contactor relays withstand short voltage dips and voltage sags (SEMI F47-0706 compliance) between 24 and 250 V and 50 and 60 Hz NFZ contactor relays have built-in surge protection and do not require additional surge suppressors Poles: 8-pole contactor relays with a non-removable front-mounted auxiliary contact block (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and including the "Mechanically Linked" symbol on the contactor relay side) Control Circuit: AC or DC-operated Accessories: a wide range of Accessories is available.
