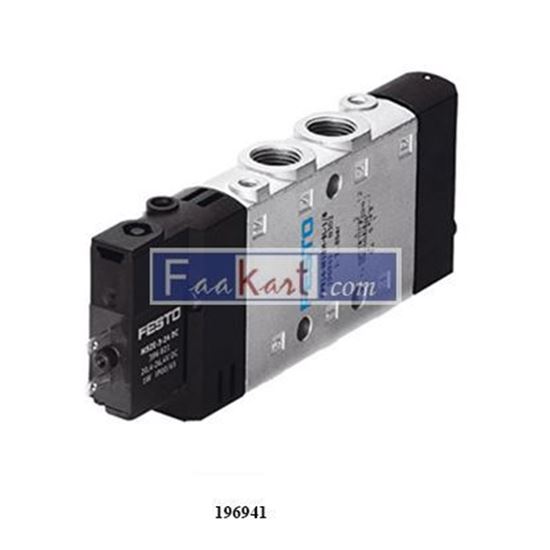

196941 FESTO SOLENOID VALVE CPE14-M1BH-5L-1/8

Be the first to review this product

Manufacturer: Festo

SKU: SKU0090

Old price: 890.00 (SAR)

Price: 538.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Valve function5/2-way, monostable
Type of actuationElectric
Construction width14 mm
Standard nominal flow rate800 l/min
pneumatic working portG1/8
Operating voltage24V DC
Operating pressure0.3 MPa ... 0.8 MPa
Operating pressure3 bar ... 8 bar
DesignPiston gate valve
Type of resetPneumatic spring
Approvalc UL us - Recognized (OL)
Maritime classificationSee certificate
Degree of protectionIP65 With plug socket To IEC 60529
Nominal size6 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Manual overrideDetenting via accessory Non-detenting
Type of pilotingPilot actuated
Pilot air supplyInternal
Flow directionNon-reversible
Symbol00991023
Valve position codeInscription label holder
lapPositive overlap
Switching time off32 ms
Switching time on24 ms
Duty cycle100% in conjunction with holding current reduction
Max. positive test pulse with 0 signal1200 µs
Max. negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 1.28 W
Permissible voltage fluctuations-15%/+10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5 °C ... 50 °C
Ambient temperature-5 °C ... 50 °C
Product weight95 g
Electrical connection2-pin
Type of mountingWith through-hole
Pilot exhaust port 82M3
Pilot exhaust port 84M3
Pilot air port 12M3
Pilot air port 14M3
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Note on materialsRoHS-compliant
Material sealsNBR
