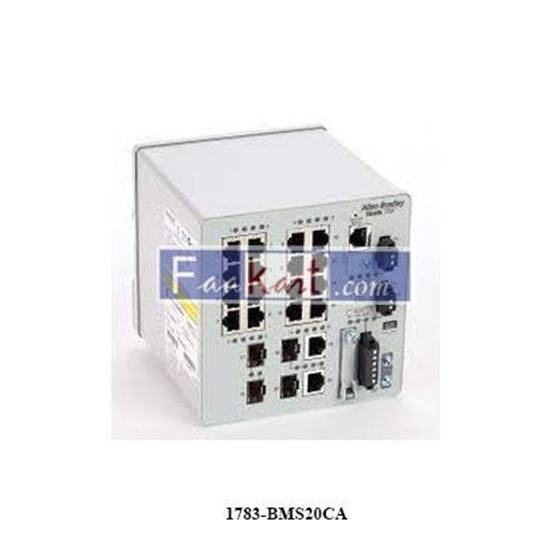

1783-BMS20CA ALLEN BRADLEY Stratix

Stratix 5700, 16 copper 10/100 ports, 2 combo(copper or SFP slot) 10/100 ports, 2 SFP 10/100 slots, full FW Width 12.7 cm Height 12.95 cm Depth 13.58 cm Approximate weight 2.04 kg Screw torque, ground terminal, maximum 0.96 Nm Screw torque, power and alarm terminals 0.23 Nm
Manufacturer: Allen-Bradley
SKU: NSRN357
1,500.00 (SAR)
9,974.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical Specifications

Mechanical

Width 12.7 cm
Height 12.95 cm
Depth 13.58 cm
Approximate weight 2.04 kg
Screw torque, ground terminal, maximum 0.96 Nm
Screw torque, power and alarm terminals 0.23 Nm



Electrical

Number of ports 10/100 Mbps RJ45 16
Number of combination-ports RJ45/Mini GBIC 2
Layer 2 No
Layer 3 No
Manageable Yes
Power consumption, maximum 30 W
Power dissipation 30 W
Firmware type Full
Isolation voltage (continuous), basic insulation type, DC power ports to ground, DC power ports to ethernet ports, and DC power ports to alarm ports 50 V
Number of combination ports 10/100 Mbps 2
Number of ports 10/100 Mbps SFP 2
Power consumption at 24V DC, 40 ˚C 21 W
Total number of ports 20
Wire size, alarm connection, solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire 0.5 mm²
Wire size, DC power connection, solid or stranded copper wire rated at 75 °C or greater 0.5 mm²
Wire size, ethernet connection RJ45 connector according to IEC 60603-7, 2 or 4-pair category 5e minimum cable according to TIA 568-B.1 or category 5 cable according to ISO/IEC 24702
Mounting method DIN rail (top hat rail)
Ethernet Yes
Protection type Alarm not rated
Alarm relay at 30V DC 1 A
Alarm relay at 48V DC 0.5 A
DLR Yes
Maximum insulation, DC power connection 1.2 mm
Power input at 12 - 48V DC, class 2/SELV 0.5 A
Wire size, ground connection, stranded copper wire, minimum 4 mm²
Wire strip length, alarm connection 6.3±0.5 mm
Wire strip length, DC power connection 6.3±0.5 mm
Wiring category on console and alarm ports 3
Wiring category on DC power ports 2
Wiring category on Ethernet ports 2


Environmental

Degree of protection (IP) IP30
Housing base material Open-style
Nominal position T4
Temperature, surrounding air, maximum 60 °C
EFT/B immunity for IEC 61000-4-4 at 100 kHz on DC power ports ±2 kV
EFT/B immunity for IEC 61000-4-4 at 100 kHz on Ethernet ports ±1 kV
EFT/B immunity for IEC 61000-4-4 at 5 kHz on alarm ports ±2 kV
EFT/B immunity for IEC 61000-4-4 at 5 kHz on Ethernet ports ±2 kV
Emissions, CISPR11 (IEC 61000-6-4) Class A
ESD immunity, IEC 61000-4-2, air discharges 15 kV
ESD immunity, IEC 61000-4-2, contact discharges 8 kV
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 1000 - 2700 MHz 10 Kg/Km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz 20 Kg/Km
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock) 55 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock) 30 g
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on Ethernet ports ±2 kV
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold) -40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock) -40 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat) -40 °C
Selectable start times T4
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms) 10 V
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on power ports ±2.5 kV
Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on power ports ±1 kV
EFT/B immunity for IEC 61000-4-4 at 100 kHz on alarm ports ±1 kV
EFT/B immunity for IEC 61000-4-4 at 2.5 kHz on alarm ports ±4 kV
EFT/B immunity for IEC 61000-4-4 at 2.5 kHz on Ethernet ports ±4 kV
EFT/B immunity for IEC 61000-4-4 at 5 kHz on DC power ports ±4 kV
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 1000 MHz 20 Kg/Km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing 5 %
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports ±2 kV
Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports ±1 kV
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold) -40 °C
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock) -40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat) -40 °C
Vibration, IEC 60068-2-6 (test Fc, operating) at 10 - 500 Hz 2 g
Voltage variation IEC 61000-4-29, interruption on DC power ports 10 ms
