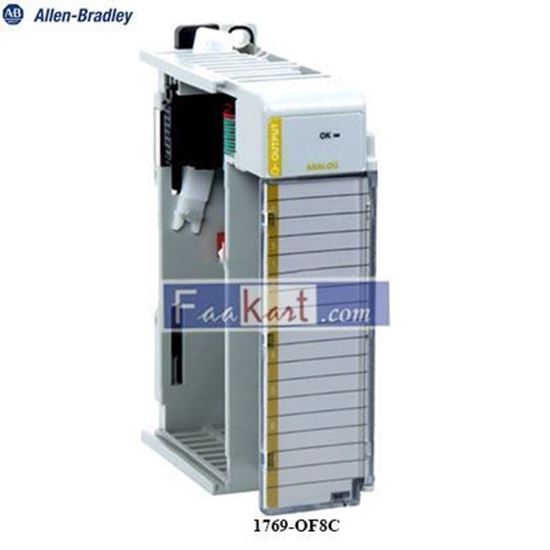

1769-OF8C Allen Bradley Analog Output Module

Allen-Bradley 1769-OF8C I/O Module, 8-Point Analog, Current Output, 24VDC Analog Output Module CompactLogix, 8-ch. single-ended, 0/4..20mA, panel mount ˄TS35, Allen-Bradley, #1769-OF8C,

Be the first to review this product

Manufacturer: Allen-Bradley

SKU: PCM240

Download Product Catalog

Old price: 12,600.00 (SAR)

Price: 8,349.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Model		1769-OF8C
Outputs		8 single-ended
Output range		0 20 mA 4 20 mA
Full scale range(1)		0 21 mA 3.2 21 mA
Resolution		16 bits (unipolar) 0 20 mA: 15.91 bits, 0.323 ?A/bit 4 20 mA: 15.59 bits, 0.323 ?A/bit
Bus current draw		5V DC, 145 mA 24V DC, 185 mA
Heat dissipation, max		2.69 W
Conversion rate (all channels), max		5 ms
Step response to 6396(2)		< 2.9 ms
Resistive load on current output		0 500 (includes wire resistance)
Inductive load (current outputs), max		0.1 mH
Field calibration		None required
Accuracy(3)		?0.35% full scale @ 25 ?C (77 ?F)
Accuracy drift with temperature		?0.0058% per ?C
Output ripple(4)		?0.05% @ 0 50 kHz
Nonlinearity		?0.05%
Repeatability(5)		?0.05%
Module error		?0.55%
Offset error		?0.55%
Output impedance		>1 M
Open and short-circuit protection		Yes
Short-circuit protection, max		21 mA
Output overvoltage protection		Yes
Output response at system powerup and power down		?0.5V DC spike for < 5 ms
Rated working voltage(6)		30V AC/30V DC
Isolation voltage		500V AC or 710V DC for 1 min (qualification test), output group to bus 30V AC/30V DC working voltage (IEC Class 2 reinforced insulation)
Weight, approx		270 g (0.60 lb)
Dimensions (HxWxD), approx		118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
Slot width		1
Module location		DIN rail or panel mount
Power supply		1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Optional 24V DC Class 2 power supply voltage range(7)		20.4 26.4V DC
Power supply distance rating		8 modules
Terminal screw torque		0.68 N m (6 lb in)
Retaining screw torque		0.46 N m (4.1 lb in)
Wire size		(22 14 AWG) solid (22 16 AWG) stranded
Wire type		Cu-90 ?C (194 ?F)
Replacement terminal block		1769-RTBN18 (1 per kit)
Replacement door label		1769-RL2 (2 per kit)
Replacement door		1769-RD (2 per kit)
Vendor ID code		1
Product type code		10
Product code		40
Input words		11
Output words		9
Configuration words		64
Enclosure type rating		None (open style)

(1) The over- or under-range flag comes on when the normal operating range (over/under) is exceeded. The module continues to convert the analog input up to the maximum full scale range. The flag automatically resets when within the normal operating range.

(2) Step response is the time between when the D/A converter was instructed to go from minimum to full range until the device is at 63% of full range.

(3) Includes offset, gain, nonlinearity, and repeatability error terms.

(4) Output ripple is the amount that a fixed output varies with time, which assumes a constant load and temperature.

(5) Repeatability is the ability of the input module to register the same reading in successive measurements for the same input signal.

(6) Rated working voltage is the maximum continuous voltage that can be applied at the input terminal, including the input signal and the value that floats above ground potential. For example, a 10V DC input signal and 20V DC potential above ground at the input terminal.(7) If the optional 24V DC Class 2 power supply is used, the 24V DC current draw from the bus is 0 mA.
