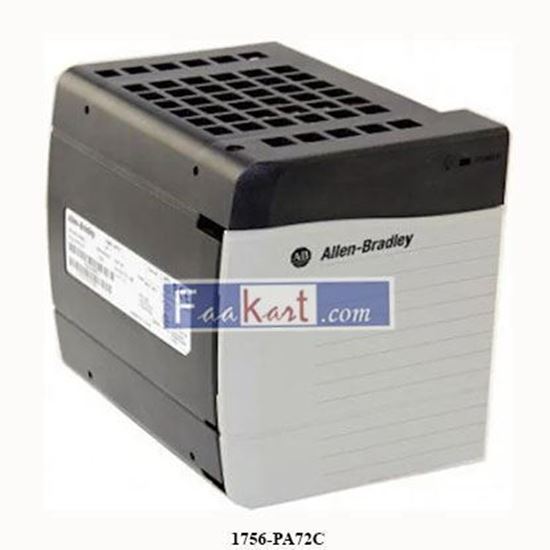

1756-PA72C Allen Bradley ControlLogix Standard Power Supply 1756-PA72/C

Manufacturer: Allen-Bradley

SKU: PCM1001

Old price: 2,645.00 (SAR)

Price: 2,428.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical Specifications

Model: 1756-PA72/C
Input voltage range?: 85...265V AC
Input voltage, nom: 120V/240V AC
Input frequency range: 47...63 Hz
Input power, max: 100VA/100 W
Output power, max: 75 W @ 0...60?C (32...140?)?
Power consumption: 25 W @ 0...60?C (32...140?)
Power dissipation: 85.3 BTU/hr
Hold-up time?:
5 cycles @ 85V AC, 50/60 Hz
6 cycles @ 120V AC, 50/60 Hz
6 cycles @ 200V AC, 50/60 Hz
6 cycles @ 240V AC, 50/60 Hz
Inrush current, max: 20 A
Current capacity at 1.2V DC: 1.5 A
Current capacity at 3.3V DC: 4 A
Current capacity at 5.1V DC: 10 A
Current capacity at 24V DC: 2.8 A
Overcurrent protection, max: User-supplied 15 A(4)
Fusing: Non-replaceable fuse is soldered in place(5)
Transformer load, max: 100VA
Isolation voltage:
250V (continuous), reinforced insulation type
Type tested @ 3500V DC for 60 s, power input-to-backplane approx
Weight, approx: 0.95 kg (2.10 lb)
Dimensions: 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.)
Module location: Left side of 1756 chassis
Chassis compatibility: Series A, Series B
Wire size: 2.5 mm? (14 AWG) solid or stranded copper wire rated at 90?C (194?F), or greater, 1.2 mm (3/64 in.) insulation max
Wire category: 1-on power ports(6)
Conductor screw torque: 0.8 N m (7 lb in)
North American temperature code: T4
Enclosure type rating: None (open-style)
