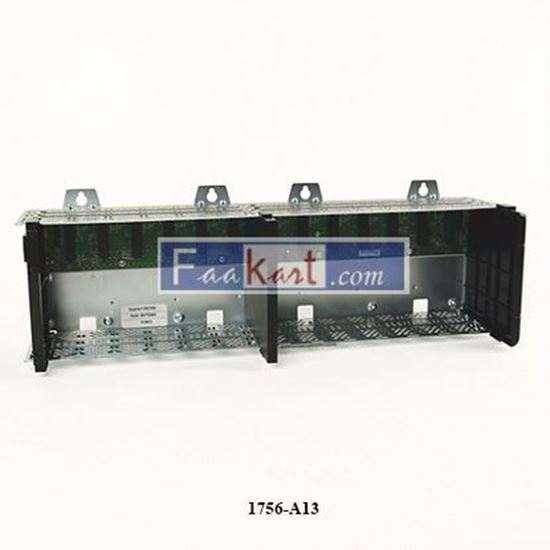

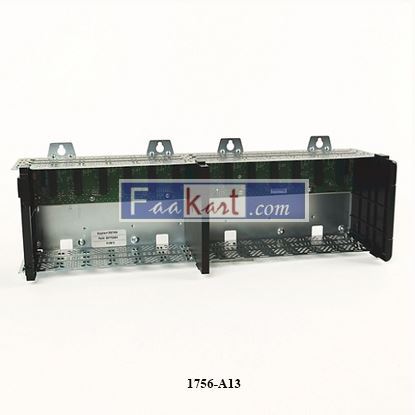

Picture of 1756-A13 ALLEN BRADLEY ControlLogix 13 Slots Chassis

1756-A13 ALLEN BRADLEY ControlLogix 13 Slots Chassis

The Allen-Bradley 1756-A13 is ControlLogix chassis. This hardware provides Thirteen (13) module mounting slots, hosting the ControlLogix modules and enables backplane connectivity. This chassis has a maximum backplane current of 1.5 A @ 1.2VDC; 4A/4A @ 3.3 VDC; 15 A/6 A @ 15 A/6 A and 2.8 A/2.8 A @ 24VDC. It supports horizontal mounting with minimum cabinet size requirement of 60.9 x 76.2 x 20.3 cm (24 x 30 x 8 in.).
Be the first to review this product
Manufacturer: Allen-Bradley
SKU: NSRN506
1,897.00 (SAR)
1,123.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical Specifications for 1756-A13

Manufacturer Rockwell Automation
Brand Allen-Bradley
Operating Temperature, Series B 0°C to +60°C (+32°F to +140°F)
No. of mounting tabs Eight (8)
Orientation Horizontal
Backplane Current @ 24VDC 2.8 A/2.8 A
Backplane Current @ 5.1VDC 15 A/6 A
Backplane Current @ 3.3VDC 4A/4 A
Backplane Current @ 1.2VDC 1.5 A
No. of slots Thirteen (13) slots
Operating Temperature, Series C -25…+60 °C (-13…+140 °F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity 5 to 95% (without condensation)
Part Number/Catalog No. 1756-A13
Series ControlLogix
Module Type Chassis
Mounting Panel Mount
Wire size Functional Earth Ground - 8.3 mm2 (8 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater Protective Earth Ground - 2.1 mm2 (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater
Slots 13
Power Dissipation (Max) 5.4 Watts
Dimensions 24 x 30 x 8 inches
Weight 4.2 pounds (1.9 kilograms)
Enclosure Open
