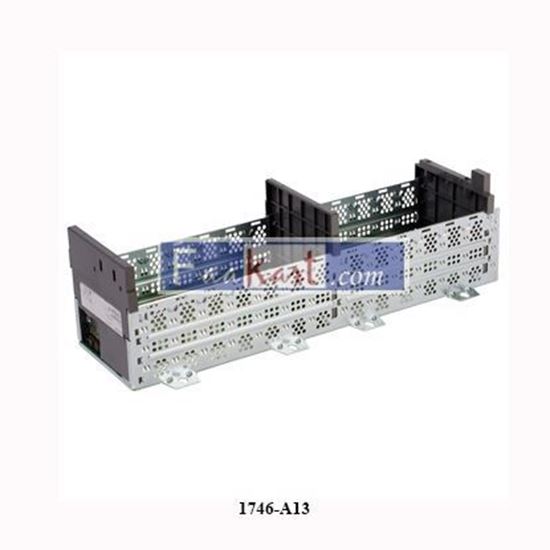

1746-A13 ALLEN BRADLEY SLC 13 Slots Chassis

The Allen-Bradley 1746-A13 is an SLC500 chassis. It has Thirteen (13) slots, providing backplane connections and housing to SLC500 Programmable Logic Controller (PLC) modules. This chassis has Eight (8) mounting tabs and installed directly to an enclosure subpanel. This chassis has physical dimensions of 50.2 x 17.1 x 14.5 cm (20.1 x 6.8 x 5.8 in) and weighs 1.9 kg (4.2 lbs).
Manufacturer: Allen-Bradley
SKU: NSRN496
1,500.00 (SAR)
649.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical Specifications for 1746-A13

Manufacturer Rockwell Automation
Weight 1.9 kg (4.2 lbs)
Mounting Clearance Top clearance: >15.3 cm (6.0 in) Side Clearance: >10.2 cm (4.0 in)
Relative Humidity 5 to 95% (without condensation)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Operating Temperature 0°C to +60°C (+32°F to +140°F)
No. of mounting tabs Eight (8)
Physical Dimensions 50.2 x 17.1 x 14.5 cm (20.1 x 6.8 x 5.8 in)
Backplane Current 5.1V dc @ 10A; 24V dc @ 2.88A
No. of slots Thirteen (13) slots
Module Type Chassis
Brand Allen-Bradley
Part Number/Catalog No. 1746-A13
Series SLC 500
Mounting Panel Mount
Hardware Type I/O Chassis
Slots 13
Dimensions 6.73 x 19.78 x 5.71 inches
UPC 10662468415344
