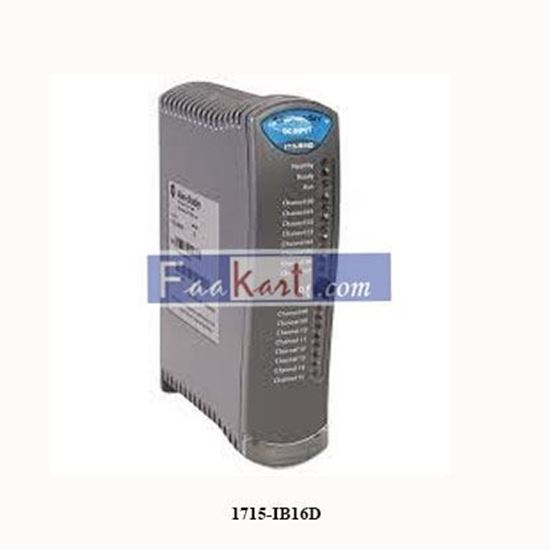

Picture of 1715-IB16D ALLEN BRADLEY 715 16 Point Digital Input Module

1715-IB16D ALLEN BRADLEY 715 16 Point Digital Input Module

The 1715-IB16D is a discrete input module that is part of Allen-Bradley’s redundant I/O system. This module features sixteen (16) discrete input channels accepting an 18–32 VDC input voltage range. This module requires the use of 1715-TASIB16D or 1715-TADIB16D terminal base assemblies. This module has a maximum slew rate of 3600 V/s and a translation time of 1/(application scan time + 10 ms) Hz.
Be the first to review this product
Manufacturer: Allen-Bradley
SKU: NSRN538
1,599.00 (SAR)
1,264.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

   Technical Specifications for 1715-IB16D

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1715-IB16D
Manufacturer Rockwell Automation
Product Line Bulletin 1715 Redundant I/O module
Brand Allen-Bradley
Module Type 16-Point Digital Input Module
Series Redundant I/O
I/O Module 16-Point Digital Input Module
Module Type Discrete input module
Power Dissipation 4 Watts Maximum
No. of channels Sixteen (16)
Nominal input voltage 24 VDC
Screw Torque 0.5 N-m
Dimensions 166 x 42 x 188 millimeters
Input voltage range 18-32 VDC
Input current 260 mA
Weight 360 grams
Backplane Power 260 milliamps
Slew rate, max 3600 V/s
Operating Temperature -25 to 70 degrees Celsius
Translation rate, max 1/(Application scan time + 10 ms) Hz
Relative Humidity 10 to 95%
Maximum Power dissipation 4.0 W
Storage Temperature -40 to 85 degrees Celsius
Isolation voltage 0V (continuous), basic insulation type, I/O ports to backplane No isolation between individual I/O ports if the 1715- TASIB16D termination assembly is fitted 50V isolation between individual ports if 1715-TADIB16D termination assembly is fitted Type tested at 500V AC for 60 s
Terminal base assembly 1715-TASIB16D or 1715-TADIB16D
